02 - Door


03 - Cabinet


04 - Liner, Lit/optional


05 - Unit


06 - Shelf

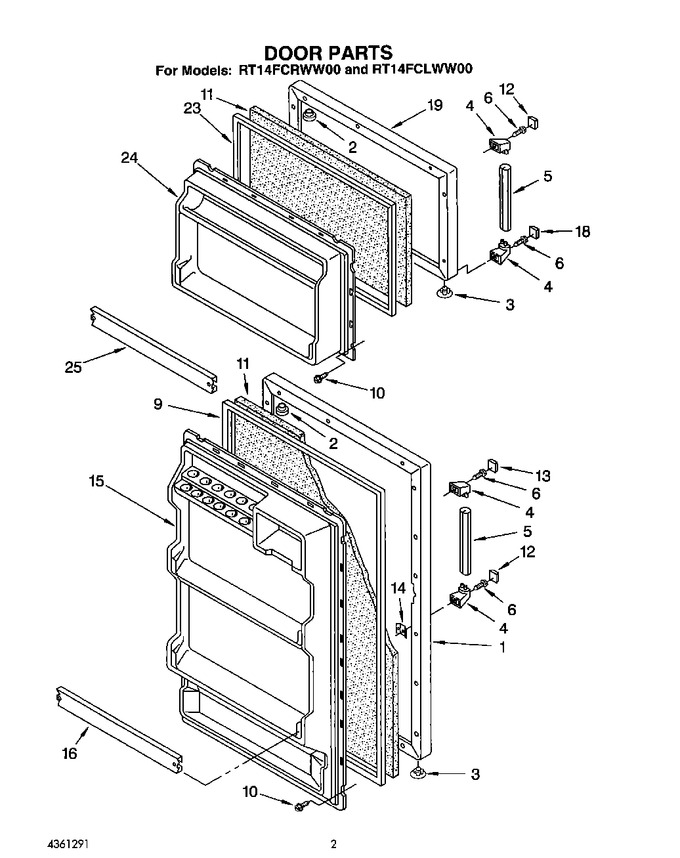

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124620		Refrigerator Door Panel (also Order Item 11) (white (r.h.))		Appelez-nous	-
1	1124621		Refrigerator Door Panel (also Order Item 11) (almond (r.h.))		Appelez-nous	-
1	1124623		Refrigerator Door Panel (also Order Item 11) (white (l.h.))		Appelez-nous	-
1	1124624		Refrigerator Door Panel (also Order Item 11) (almond (l.h.))		Appelez-nous	-
2	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
4	1124591		End Cap, Handle		Appelez-nous	-
5	1124592		Handle, Center		Appelez-nous	-
6	817000		Screw		Appelez-nous	-
9	2188445A		Door Gasket, Magnetic   (Replaces: 1128059)				$ 197.35
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	1114925		Cover, Screw		Appelez-nous	-
13	934724		Cover, Screw		Appelez-nous	-
14	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.88
15	1100244		Interior Door Panel (refrigerator)		Appelez-nous	-
16	1116076		Trim, Door Shelf		Appelez-nous	-
18	934724		Cover, Screw		Appelez-nous	-
19	1124626		Freezer Door Panel (also Order Item 11) (white (r.h.))		Appelez-nous	-
19	1124630		Freezer Door Panel (also Order Item 11) (almond (l.h.))		Appelez-nous	-
19	UEFM		Freezer Door Panel (also Order Item 11) (white (l.h.))   (Replaces: 1124629)			Immediately	$ 105.98
19	1124627		Freezer Door Panel (also Order Item 11) (almond (r.h.))		Appelez-nous	-
23	WP2188456A		Door Gasket, Magnetic   (Replaces: 1128060)				$ 258.49
24	1100247		Interior Door Panel (freezer)		Appelez-nous	-
25	1116080		Trim, Door Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
