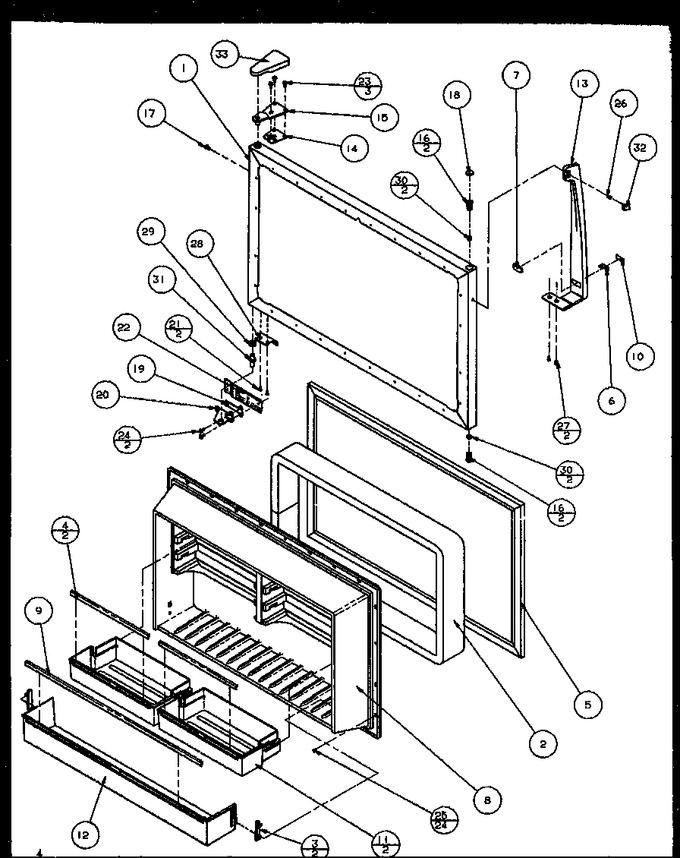

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10263505Q | Fr Dr Foam As Cfc 11 |
|
- | |||||
| 1 | 10263504Q | Fz Dr Fm As Cfc11 |
|
- | |||||
| 1 | 10263506Q | Fz Dr Fm L |
|
- | |||||
| 2 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 3 | 10202001 | Clip, Retainer |
|
- | |||||
| 4 | 10183915 | Trim, Door Shelf |
|
- | |||||
| 5 | D7605108 | Gasket |
|
- | |||||
| 6 | 10184501 | Pad Nameplate |
|
- | |||||
| 7 | 10184302 | Plug-nameplate G |
|
- | |||||
| 7 | 10184301 | Plug-nameplate W |
|
- | |||||
| 8 | 10184801 | Liner Fz Door |
|
- | |||||
| 9 | 10183916 | Trim Dr. Shelf |
|
- | |||||
| 10 | 10184401 | Nameplate, Handle |
|
- | |||||
| 11 | 10183206 | Shelf Fz Door |
|
- | |||||
| 12 | 10183306 | Retainer Door |
|
- | |||||
| 13 | 10253509 | Handle Assy Fz W |
|
- | |||||
| 13 | 10253513 | Assy, Frz Hndl L |
|
- | |||||
| 13 | 10253511 | Handle-fz Door Assembly, Gold |
|
- | |||||
| 14 | 10200302 | Shim, Top Hinge |
|
- | |||||
| 14 | 10200301 | Shim, Top Hinge |
|
- | |||||
| 14 | 10200303 | Shim, Top Hinge |
|
- | |||||
| 15 | D7757806 | Top Hinge Assy |
|
- | |||||
| 16 | 10263802 | Bushing, Door (wht) |
|
- | |||||
| 17 | M0310714 | Plug |
|
- | |||||
| 17 | M0310704 | Plug |
|
- | |||||
| 17 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 18 | 10263703 | Plug, Button |
|
- | |||||
| 18 | 10263702 | Plug Button L |
|
- | |||||
| 18 | 10263701 | Plug Button |
|
- | |||||
| 19 | 10200501 | Shim, Center Hinge |
|
- | |||||
| 19 | 10200502 | Shim, Center Hinge |
|
- | |||||
| 19 | 10200503 | Shim, Center Hinge |
|
- | |||||
| 20 | 10200701 | Hinge, Center |
|
- | |||||
| 21 | M0203931 | Screw, Tf |
|
- | |||||
| 22 | 10321201 | Top Strip |
|
- | |||||
| 23 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 24 | W11573362 | Screw, T. F. (Replaces: M0226232) |
|
$ 14.72 | |||||
| 25 | M0219730 | Screw |
|
$ 7.65 | |||||
| 26 | M0210418 | Screw |
|
- | |||||
| 27 | WPW10348409 | Screw (Replaces: M0221716) |
|
Immediately | $ 8.20 | ||||
| 28 | 10200203 | Stop, Door |
|
- | |||||
| 29 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 30 | 10252902 | Filter Bushing |
|
- | |||||
| 31 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 32 | 10201803 | Cover-handle Screw G |
|
- | |||||
| 32 | 10201805 | Cover- Hndl Screw Almond |
|
- | |||||
| 32 | 10201801 | Cover-handle Screw W |
|
- | |||||
| 33 | 10182601 | Cover, Hinge W |
|
- | |||||
| 33 | 10182603 | Cover, Hinge L |
|
- | |||||
| 33 | 10182602 | Cover, Hinge G |
|
- |
