Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10440403 Duct, Frz Air Appelez-nous -
12 10448903 Rack, Bottle Appelez-nous -
21 10779601 Insul. Air Duct Appelez-nous -
22 10436404 Lid, Utility Special Order $ 60.85

31 12172501 Harness, Cabinet Appelez-nous -
32 10310901 Tray, Butter Appelez-nous -
41 B8386613 Gasket Appelez-nous -
61 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 39.09

71 B5733302 Clip, Ground Appelez-nous -
72 10423129 Bin-utility Appelez-nous -
81 C8730103 Housing-light Appelez-nous -
82 10436506 Tray, Egg Special Order $ 8.28

91 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

101 D7714406 Socket, Angle Appelez-nous -
111 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

121 M0580007 Grommet, Screw Appelez-nous -
131 10678401 Shield, Frz Light Appelez-nous -
171 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

191 10448501 Shim, Top Hinge Appelez-nous -
201 10448502 Shim, Top Hinge Appelez-nous -
211 10448503 Shim, Top Hinge Appelez-nous -
221 10562201 Shim, Center Hinge Appelez-nous -
231 10562202 Shim, Center Hinge Appelez-nous -
241 10562203 Shim, Center Hinge Appelez-nous -
261 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

271 10351002 Pin, Hinge (ctr) Appelez-nous -
291 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

301 5303918507 Assy, Top Hinge   (Replaces: 12077303) Special Order $ 956.29

311 12028501 Closure, Door (wht) Special Order $ 6.67

321 10433412 Hinge-ctr Chrome Appelez-nous -
331 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.62

381 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

441 10444705 Kit Hinge Cover (white) Appelez-nous -
541 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

1571 Y10440001 Shelf, Wire Frz. (18) Appelez-nous -
2021 M0310330 Plug, Button White Appelez-nous -
3561 WP67001255 Use 10476207   (Replaces: 10476201) Special Order $ 213.23


    View Diagram in Separate Window     Print Icon   Print Part List

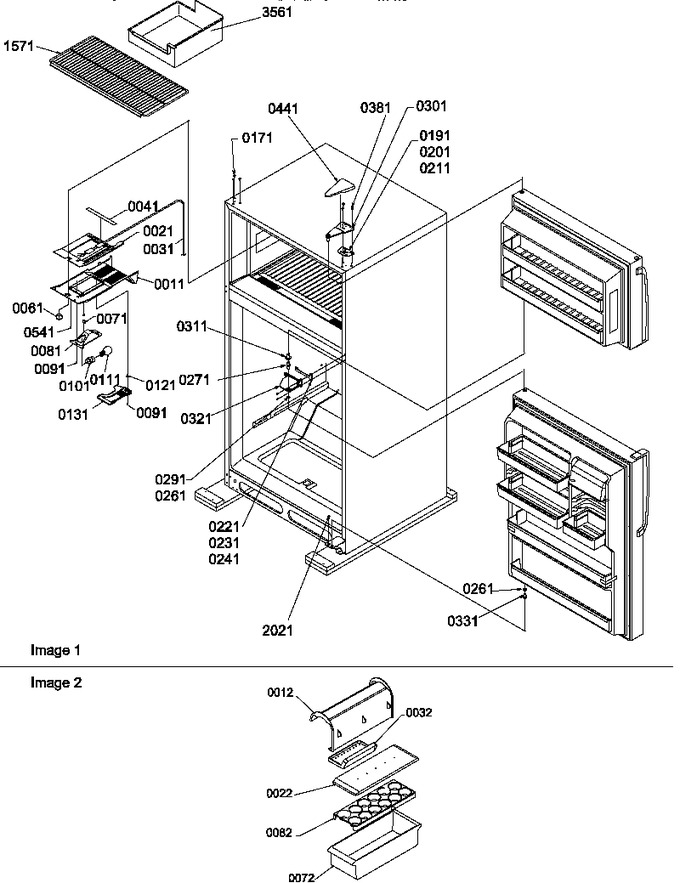

Diagram for TZI18V2W (BOM: P1319002W W)
