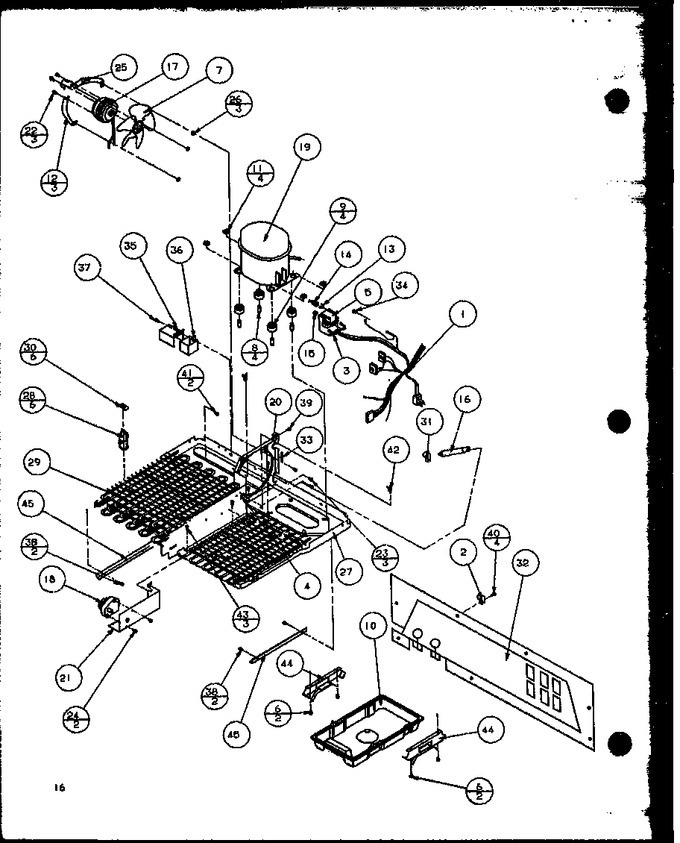

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10354601 | Harness. M.c. |
|
- | |||||
| 2 | M0102301 | Clamp |
|
- | |||||
| 3 | YB8358601 | Bale Strap |
|
- | |||||
| 4 | A9008301 | Felt |
|
- | |||||
| 5 | C8960801 | Term Cover |
|
- | |||||
| 6 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 7 | B5742601 | Blade, Fan |
|
- | |||||
| 8 | A3072001 | Sleeve K |
|
- | |||||
| 9 | WPW10169124 | Grommet (Replaces: B8333401) |
|
$ 7.55 | |||||
| 10 | D7790601 | Drain Pan |
|
- | |||||
| 11 | B8352901 | Clip Comp |
|
- | |||||
| 12 | C8982101 | Bracket, Cond Motor |
|
- | |||||
| 13 | B8358301 | Spring, Overload |
|
- | |||||
| 14 | C8906203 | Overload |
|
- | |||||
| 15 | 2154436 | Relay-ptc (Replaces: C8931502) |
|
$ 141.69 | |||||
| 16 | 4007A | Drier (Replaces: B2150502) |
|
Immediately | $ 15.05 | ||||
| 17 | 833697 | Motor, Fan (Replaces: D7584001) |
|
Immediately | $ 88.15 | ||||
| 18 | R0168027 | Kit, Defrost Timer (Replaces: 10129303) |
|
Immediately | $ 159.86 | ||||
| 19 | W10439652 | Kit, Compressor (dan Nf7ak) (Replaces: D7736201) |
|
$ 442.20 | |||||
| 20 | D7691002 | Cond. Fan Shrd |
|
- | |||||
| 21 | D7752701 | Bracket, Timer |
|
- | |||||
| 22 | M0223803 | Screw |
|
- | |||||
| 23 | M0221332 | Screw, Shoulder |
|
- | |||||
| 24 | M0218118 | Screw |
|
- | |||||
| 25 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 26 | M0500107 | Grommet K |
|
- | |||||
| 27 | D7595413 | Base Pan |
|
- | |||||
| 28 | B8346301 | Spacer Cond. |
|
- | |||||
| 29 | D7654301 | Condenser Pntd |
|
- | |||||
| 30 | M0293703 | Speednut |
|
- | |||||
| 31 | M0104002 | Clamp-drier |
|
- | |||||
| 32 | C8890208 | Back M.c. Comp |
|
- | |||||
| 33 | B5759604 | Gasket |
|
- | |||||
| 34 | M0253916 | Screw |
|
- | |||||
| 35 | 10266401 | Shield-capacitor |
|
- | |||||
| 36 | WPW10662129 | Capacitor (Replaces: C8931602) |
|
Immediately | $ 58.86 | ||||
| 37 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 38 | M0211530 | Screw |
|
- | |||||
| 39 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 40 | M0219704 | Screw |
|
- | |||||
| 41 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 42 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.94 | |||||
| 43 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 44 | D7790501 | Support Drain Pan |
|
- | |||||
| 45 | D7835501 | Support M.c. |
|
- |
