Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474802 Grille, Toe (white) Special Order $ 44.88

1 10474804 Grille- L Toe V Appelez-nous -
1 10474801 Grille, Toe (black) Appelez-nous -
2 10551501 Clip-toe Grille Appelez-nous -
3 Y10430109 Pan-crisper Appelez-nous -
4 10447401 Slide, Crisper Appelez-nous -
5 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

7 10448901 Rack, Wine Appelez-nous -
8 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 7.30

9 10439302 Ladder, Evap Appelez-nous -
9 D7599002 Ladder, Center Appelez-nous -
10 D7874402 Cover-fl Tb/plug Appelez-nous -
13 67006692 Screw, Shoulder   (Replaces: 10481301) Special Order $ 10.79

14 10505607 Extr. Wire Shelf Appelez-nous -
15 10250502 Rack, Freezer Appelez-nous -
16 10506002 Shelf, Wire Frz Appelez-nous -
17 WP67001130 Plug, Button (wht)   (Replaces: M0310701) In-Stock Immediately $ 5.98

17 M0310714 Plug Appelez-nous -
17 WP12246608 Plug, Button (blk)   (Replaces: M0310728) In-Stock Immediately $ 8.15

18 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

18 M0310716 Plug Appelez-nous -
18 WP12246608 Plug, Button (blk)   (Replaces: M0310727) In-Stock Immediately $ 8.15

19 M0230923 Screw Appelez-nous -
21 10370012 Shelf, Glass Special Order $ 86.24

22 D7599105 Ladder, Side Appelez-nous -
24 10481001 Roller, Pan Special Order $ 10.99

25 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

26 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

27 10432701 Rail, Side Crisper Appelez-nous -
28 10432702 Rail, Side Crisper Appelez-nous -
29 10432803 Rail, Ctr. Crisper Appelez-nous -
30 10432804 Rail, Ctr. Crisper Appelez-nous -
31 10450214 Extr., Crisper Front Appelez-nous -
32 10450217 Extr., Crisper Front Appelez-nous -
33 10433804 Rail, Crisper Back Appelez-nous -
34 10467804 Band, Crisper Cont. Appelez-nous -
35 10435604 Rail, Crisper Back Appelez-nous -
36 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

NI 10480507 Assy, Crisper Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

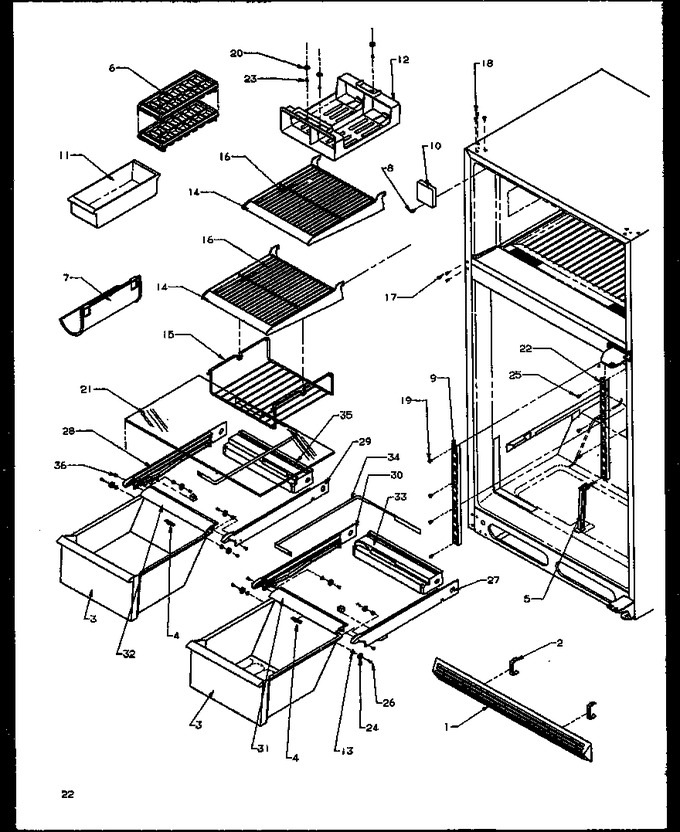

Diagram for TZI21R2L (BOM: P1168011W L)
