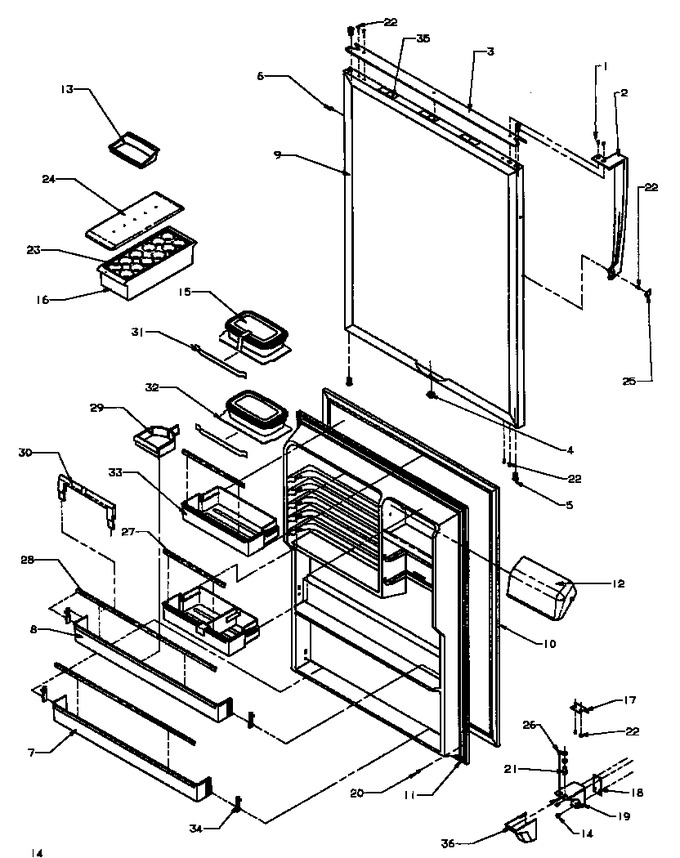

TZI21R3L (BOM: P1182001W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WPW10348409	Screw (Replaces: M0221718)		Immediately	$ 8.20
2	10253514	Assy, Ref Hndl L	Appelez-nous	-
3	10201507	Cap, Door	Appelez-nous	-
4	M0310338	Plug Button Almond	Appelez-nous	-
5	10393802	Bushing, Door (wht)	Appelez-nous	-
6	M0310730	Plug Button (almond)	Appelez-nous	-
7	10419001	Retainer, Door	Appelez-nous	-
8	10183108	Retainer, Ref Door (no Decor)	Appelez-nous	-
9	10481901LQ	Assy Ref. Door Fm	Appelez-nous	-
10	WP12550111Q	Gasket,ref Dr(white) (Replaces: 10456803)			$ 178.50
11	10440801	Liner, Refrig Door	Appelez-nous	-
12	10423411	Door, Dairy	Appelez-nous	-
13	10310901	Tray, Butter	Appelez-nous	-
14	WP67006715	Screw (Replaces: M0233847)			$ 7.55
15	D7806405	Container Sec. Ser.	Appelez-nous	-
16	10423124	Bin, Egg V	Appelez-nous	-
17	10447102	Stop, Door	Appelez-nous	-
18	10447902	Shim Hinge	Appelez-nous	-
18	10447901	Shim, Btm Hinge	Appelez-nous	-
19	10433208	Hinge, Bottom White	Appelez-nous	-
19	10433209	Hinge, Bottom Black	Appelez-nous	-
20	M0219730	Screw			$ 7.65
21	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
22	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
22	WPW10348409	Mounting Screw (Replaces: M0203944)		Immediately	$ 8.20
23	1036504	Tray-egg	Appelez-nous	-
24	10436404	Lid, Utility			$ 60.85
25	10201806	Cover- Hndl Screw Almond	Appelez-nous	-
27	10183933	Trim, Door Shelf	Appelez-nous	-
28	10183969	Trim, Door Shelf	Appelez-nous	-
29	10441101	Hugger, Bottle (shelf Divider)	Appelez-nous	-
30	10468001	Retainer, Tall Pkg	Appelez-nous	-
31	10425301	Retainer, Package	Appelez-nous	-
32	10425101	Shelf, Service	Appelez-nous	-
33	10416901	Shelf, Ref Door	Appelez-nous	-
34	10202001	Clip, Retainer	Appelez-nous	-
35	M0275163	Tape Per Roll	Appelez-nous	-
36	10462804	Cover, L Hinge Lw	Appelez-nous	-
