01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Unit


05 - Door, Lit/optional


06 - Shelf

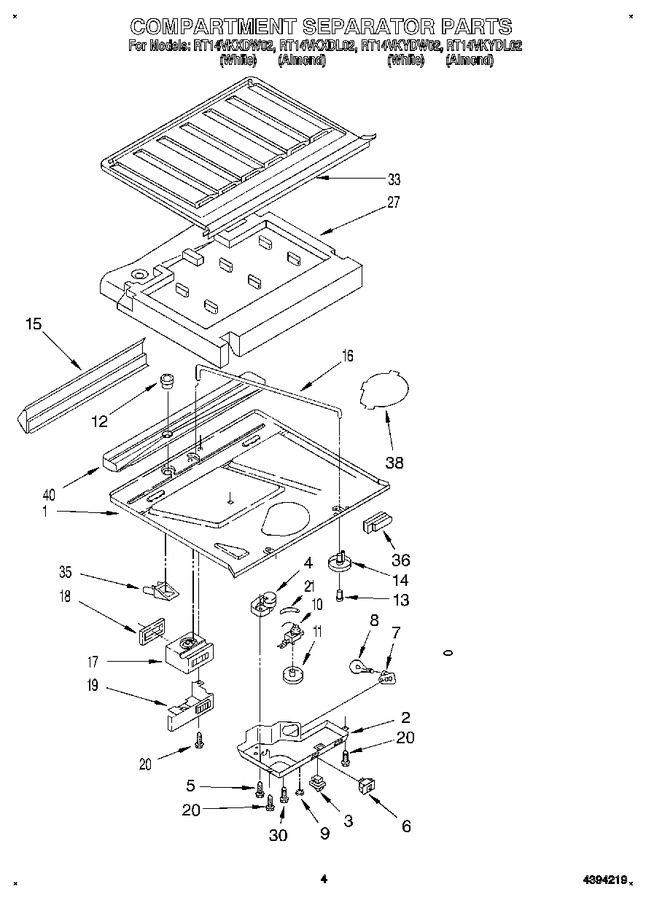

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116091		Bottom, Compartment Separator		Appelez-nous	-
2	2178972		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
4	4388931		Timer, Defrost   (Replaces: 2169266)			Immediately	$ 243.98
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.95
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket Assembly   (Replaces: 2162085)			Immediately	$ 115.67
8	W11679940		Bulb, Light   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	WP819470		Thermostat & Barrier Assembly   (Replaces: 940038)				$ 164.96
11	937144		Knob, Thermostat		Appelez-nous	-
12	937359		Drain Insert		Appelez-nous	-
13	1111792		Retainer, Knob		Appelez-nous	-
14	1111737		Knob, Air Control		Appelez-nous	-
15	2151234		Gasket, Bottom Separator		Appelez-nous	-
16	1111438		Rod, Connecting		Appelez-nous	-
17	1118973		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	937226		Cover, Air Diffuser		Appelez-nous	-
20	VS9993		Screw		Appelez-nous	-
21	WP2196003		Thermostat Tube Barrier   (Replaces: 549683)				$ 8.35
27	939272		Insulation, Compartment Separator		Appelez-nous	-
30	488624		Screw, 8 X 3/8		Appelez-nous	-
33	935717		Top, Compartment Separator		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
36	939056		Rear Corner, Block		Appelez-nous	-
38	937227		Heat Shield		Appelez-nous	-
40	935718		Drain Pan		Appelez-nous	-
