SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Unit


05 - Door, Lit/optional


06 - Shelf

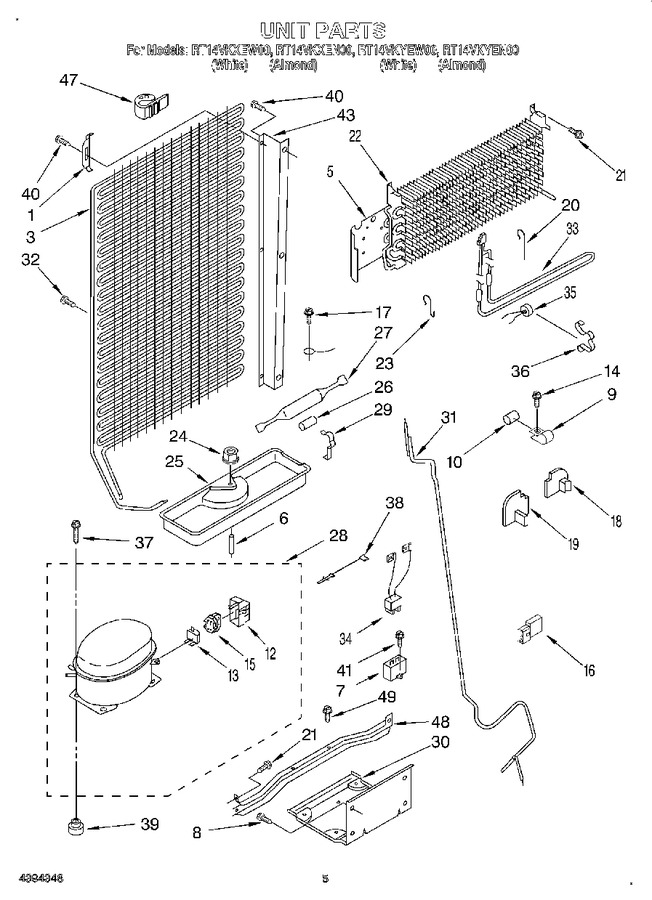

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2150664		Bracket		Appelez-nous	-
3	2172124		Condenser Assembly		Appelez-nous	-
5	935699		Heat Shield		Appelez-nous	-
6	938275		Spacer		Appelez-nous	-
7	2169137		Running Capacitor		Appelez-nous	-
8	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
9	510716		Tube Clamp		Appelez-nous	-
10	1108064		Dampener		Appelez-nous	-
12	WP2162358		Cover, Terminal   (Replaces: 2162358)				$ 95.29
13	4387535		Overload (service (includes Relay))   (Replaces: 2154760)				$ 191.05
13	4387913		Overload (production (includes Relay))   (Replaces: 2154759)			Immediately	$ 84.39
14	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
15	N/A		Relay (see Overload)		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
17	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
18	2151218		Side Block, Right Evaporator		Appelez-nous	-
19	2151219		Side Block, Left Evaporator		Appelez-nous	-
20	850721		Clip, Heater		Appelez-nous	-
21	489340		Screw   (Replaces: 488683)		Appelez-nous	-
22	2178207		Evaporator		Appelez-nous	-
23	851358		Support, Heater		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2172390)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	W10309989		Compressor (includes Items 7, 12, 13, 15, 34, 37, 39) (also Order)   (Replaces: 2169442)			Immediately	$ 689.81
28	482801		Tray Mounting Kit				$ 119.50
29	1127590		Clamp, Dryer		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	2172126		Exchanger, Heat		Appelez-nous	-
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	2151216		Heater, Defrost		Appelez-nous	-
34	WP2172890		Capacitor Wiring   (Replaces: 2172890)				$ 8.51
35	WP4387499		Bi-metal, Defrost   (Replaces: 2151215)				$ 126.90
36	513584		Clamp		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	1101125		Overload Wiring (red)		Appelez-nous	-
38	1101124		Overload Wiring (white)		Appelez-nous	-
39	876811		Grommet   (Replaces: 1100826)				$ 7.79
40	VS9993		Screw		Appelez-nous	-
41	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
43	2150553		Channel, Condenser (right)		Appelez-nous	-
43	2150554		Channel, Condenser (left)		Appelez-nous	-
47	2150954		Bumper (2)		Appelez-nous	-
48	945448		Unit Mounting Rail		Appelez-nous	-
49	876764		Valve, Access(3/16``)			Immediately	$ 95.92
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
49	978026		Valve, Access (5/16``)			Immediately	$ 134.49
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 137.25
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87

    View Diagram in Separate Window       Print Part List
