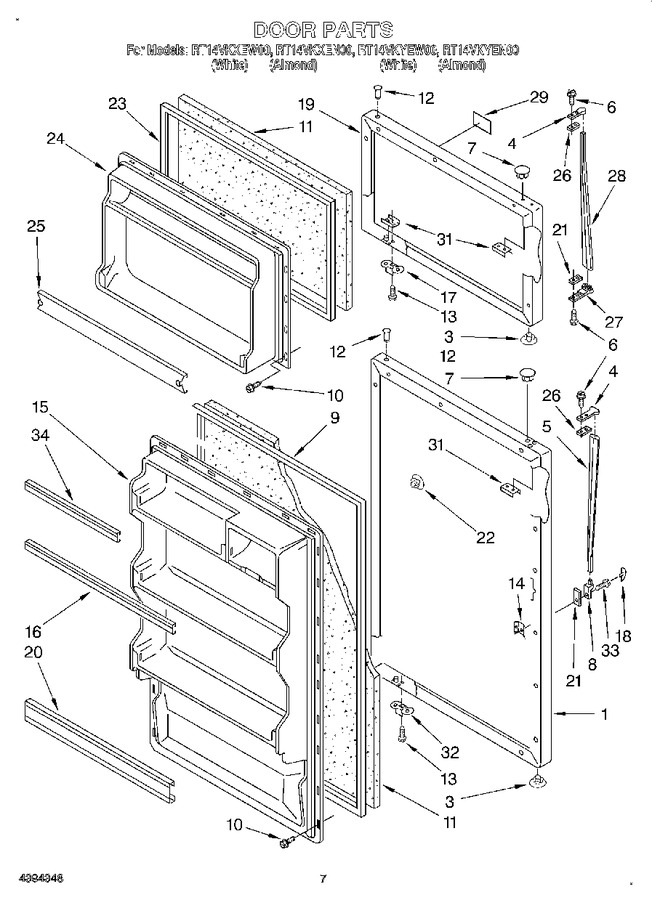

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2191107		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2191108		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
4	819342		End Cap, Handle   (Replaces: 1108952)			Immediately	$ 47.96
5	1109166		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	989196		Hole Plug (2) (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (2) (white)   (Replaces: 844478)			Immediately	$ 7.80
8	819342		End Cap, Handle   (Replaces: 2183140)			Immediately	$ 47.96
9	2188445A		Door Gasket, Magnetic   (Replaces: 1128059)				$ 187.95
10	VS9993		Screw		Appelez-nous	-
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
13	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
14	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.50
15	2151299		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2151347)				$ 118.40
17	944035		Bracket, Door Stop		Appelez-nous	-
18	WP1101634		Cover, Screw   (Replaces: 1110059)				$ 9.22
19	2191098		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
19	2191099		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
20	2151345		Trim, Door Shelf		Appelez-nous	-
21	943188		Spacer, Handle				$ 7.80
22	WP2189000		Hole Plug (2) (white)   (Replaces: 1122653)			Immediately	$ 7.40
22	1122654		Hole Plug (2) (almond)		Appelez-nous	-
23	WP2188456A		Door Gasket, Magnetic   (Replaces: 1128060)				$ 246.18
24	2151203		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2201061		Trim, Door Shelf   (Replaces: 2151350)				$ 118.40
26	943187		Shim				$ 25.14
27	1108955		End Cap, Handle		Appelez-nous	-
28	1109171		Handle, Center		Appelez-nous	-
29	2163676		Nameplate				$ 36.02
31	2183198		Tap Plate		Appelez-nous	-
32	1115910		Bracket, Door Stop		Appelez-nous	-
33	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
34	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
34	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
34	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
34	833938		Kit, Terminal Connector				$ 8.07
34	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
34	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
34	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
34	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
34	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
34	WP2201061		Trim, Door   (Replaces: 2151346)				$ 118.40
34	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
34	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
34	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
34	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
34	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
34	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
34	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
34	2148984		Door Reversal Instructions		Appelez-nous	-
34	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT2178980		Service & Wiring Sheet		Appelez-nous	-
	LIT2172354		Care & Use Guide		Appelez-nous	-
	LIT2191098		Energy Label		Appelez-nous	-
