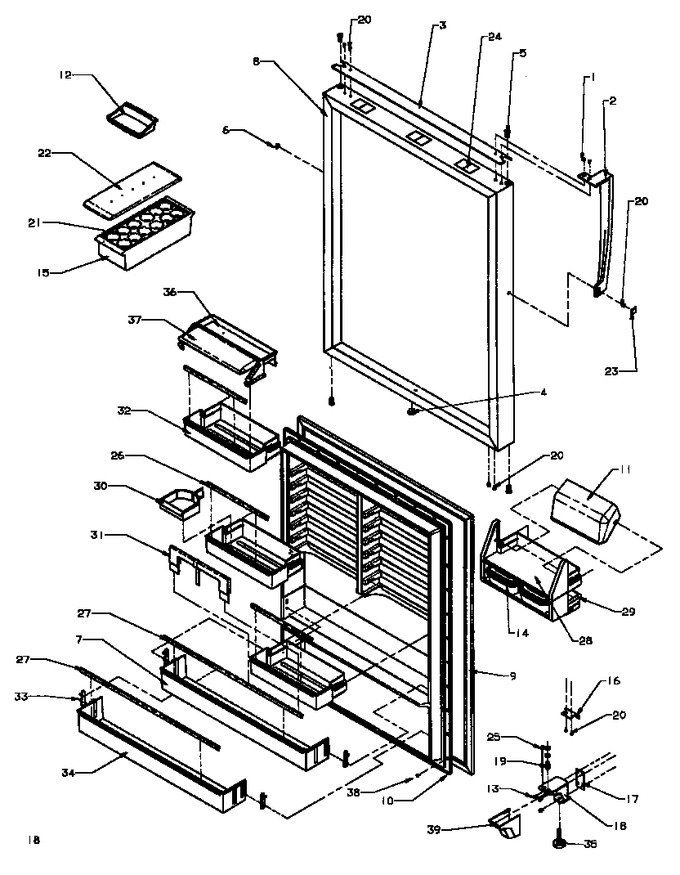

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
2	10253514		Assy, Ref Hndl L		Appelez-nous	-
3	10201507		Cap, Door		Appelez-nous	-
4	M0310338		Plug Button Almond		Appelez-nous	-
5	10393802		Bushing, Door (wht)		Appelez-nous	-
6	M0310730		Plug Button (almond)		Appelez-nous	-
7	10183108		Retainer, Ref Door (no Decor)		Appelez-nous	-
8	10481902LQ		Assy Dr Ref.		Appelez-nous	-
9	WP12550111Q		Gasket,ref Dr(white)   (Replaces: 10456803)				$ 178.50
10	10444601		Liner, Refrig. Door		Appelez-nous	-
11	10422606		Door, Dairy		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	10185001		Container		Appelez-nous	-
15	10423124		Bin, Egg V		Appelez-nous	-
16	10447102		Stop, Door		Appelez-nous	-
17	10447902		Shim Hinge		Appelez-nous	-
17	10447901		Shim, Btm Hinge		Appelez-nous	-
18	10575305		Hinge, Bottom (almond)		Appelez-nous	-
18	10575304		Hinge, Btm (white)		Appelez-nous	-
19	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
20	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
21	10436504		Tray, Egg		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10201806		Cover- Hndl Screw Almond		Appelez-nous	-
24	M0275163		Tape Per Roll		Appelez-nous	-
25	M0310331		Plug, Button Almond		Appelez-nous	-
26	10183921		Trim Dr. Shelf		Appelez-nous	-
27	10183969		Trim, Door Shelf		Appelez-nous	-
28	10182702		Shelf, Dairy		Appelez-nous	-
29	10182802		Shelf, Container Ser.		Appelez-nous	-
30	10441101		Hugger, Bottle (shelf Divider)		Appelez-nous	-
31	10468001		Retainer, Tall Pkg		Appelez-nous	-
32	10183006		Shelf, Ref Door		Appelez-nous	-
33	10202001		Clip, Retainer		Appelez-nous	-
34	10419001		Retainer, Door		Appelez-nous	-
35	W11177593		Brake, Foot   (Replaces: 10354001)				$ 12.18
36	10431101		Shelf, Snack Stop		Appelez-nous	-
37	10431007		Door, Snack Stop		Appelez-nous	-
38	M0219730		Screw				$ 7.65
39	10462704		Cover-l Hinge Lw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
