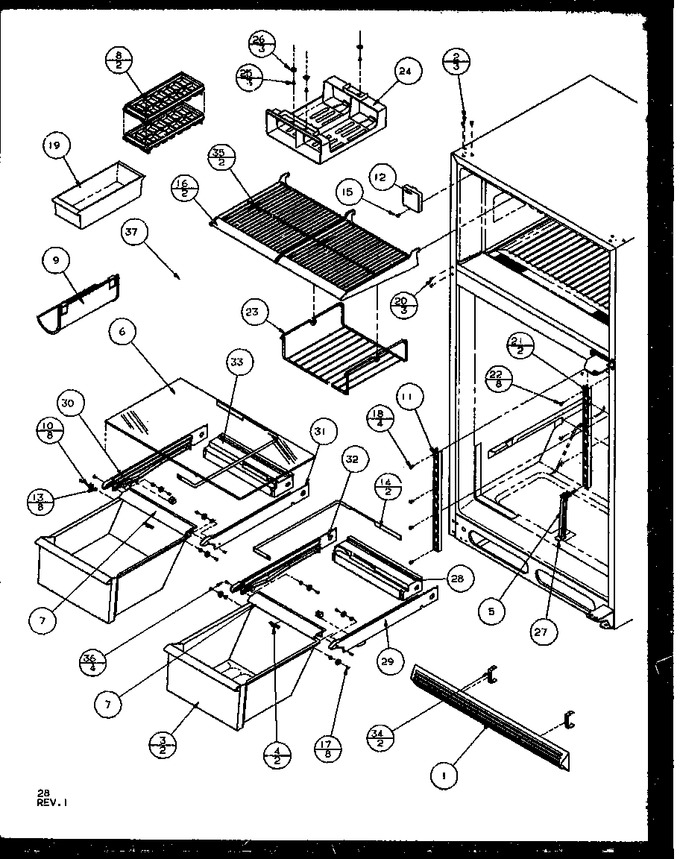

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474804 | Grille- L Toe V |
|
- | |||||
| 1 | 10474802 | Grille, Toe (white) |
|
$ 44.88 | |||||
| 1 | 10474801 | Grille, Toe (black) |
|
- | |||||
| 2 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 2 | WP12246608 | Plug, Button (blk) (Replaces: M0310727) |
|
Immediately | $ 8.15 | ||||
| 2 | M0310716 | Plug |
|
- | |||||
| 3 | Y10430107 | Pan-crisper |
|
- | |||||
| 4 | 10447401 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 6 | 10370012 | Shelf, Glass |
|
$ 86.24 | |||||
| 7 | 10450217 | Extr., Crisper Front |
|
- | |||||
| 7 | 10450214 | Extr., Crisper Front |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | 10448901 | Rack, Wine |
|
- | |||||
| 10 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 11 | D7599002 | Ladder, Center |
|
- | |||||
| 12 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 13 | 67006692 | Screw, Shoulder (Replaces: 10481301) |
|
$ 10.79 | |||||
| 14 | 10467804 | Band, Crisper Cont. |
|
- | |||||
| 15 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 16 | 10505607 | Extr. Wire Shelf |
|
- | |||||
| 17 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 18 | M0230923 | Screw |
|
- | |||||
| 19 | 10423112 | Bin-ice |
|
- | |||||
| 20 | WP12246608 | Plug, Button (blk) (Replaces: M0310728) |
|
Immediately | $ 8.15 | ||||
| 20 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 20 | M0310714 | Plug |
|
- | |||||
| 21 | D7599105 | Ladder, Side |
|
- | |||||
| 22 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 23 | 10250502 | Rack, Freezer |
|
- | |||||
| 24 | 10423001 | Rack, Ice Service |
|
- | |||||
| 25 | M0219523 | Screw |
|
- | |||||
| 26 | M0270508 | Washer |
|
- | |||||
| 27 | 10571401 | Shim, Crisper Support |
|
- | |||||
| 28 | 10433801 | Rail, Crisper Back |
|
- | |||||
| 29 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 30 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 31 | 10432801 | Rail, Ctr. Crisper |
|
- | |||||
| 32 | 10432802 | Rail, Ctr. Crisper |
|
- | |||||
| 33 | 10435601 | Rail, Crisper Back |
|
- | |||||
| 34 | 10551501 | Clip-toe Grille |
|
- | |||||
| 35 | 10506002 | Shelf, Wire Frz |
|
- | |||||
| 36 | WPW10348409 | Mounting Screw (Replaces: M0237921) |
|
Immediately | $ 8.20 | ||||
| NI | 10480507 | Assy, Crisper Frame |
|
- |
