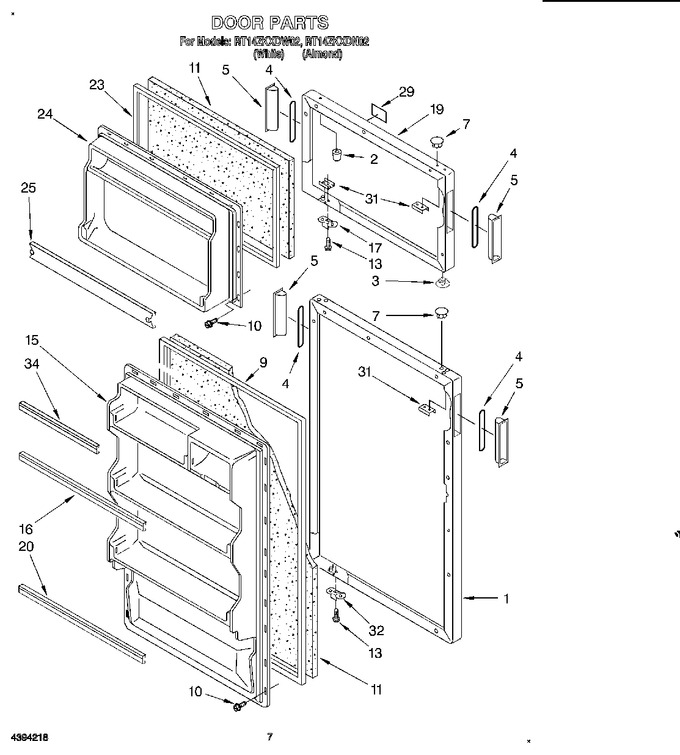

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Unit


05 - Door


06 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172340		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2172341		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
4	845758		Gasket, Handle (2)		Appelez-nous	-
5	934508		Handle (almond)		Appelez-nous	-
5	WP984493		Handle (white)   (Replaces: 984493)				$ 114.49
7	989196		Hole Plug (2) (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (2) (white)   (Replaces: 844478)			Immediately	$ 8.19
9	2188445A		Door Gasket, Magnetic   (Replaces: 1128059)				$ 197.35
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
15	2151299		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2151347)				$ 124.32
17	944035		Bracket, Door Stop		Appelez-nous	-
19	2172349		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
19	2172348		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
20	2151345		Trim, Door Shelf		Appelez-nous	-
23	WP2188456A		Door Gasket, Magnetic   (Replaces: 1128060)				$ 258.49
24	2151203		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2201061		Trim, Door Shelf   (Replaces: 2151350)				$ 124.32
29	2163676		Nameplate				$ 36.02
31	943185		Tap Plate		Appelez-nous	-
32	1115910		Bracket, Door Stop		Appelez-nous	-
34	WP2201061		Trim, Door   (Replaces: 2151346)				$ 124.32

    View Diagram in Separate Window       Print Part List
