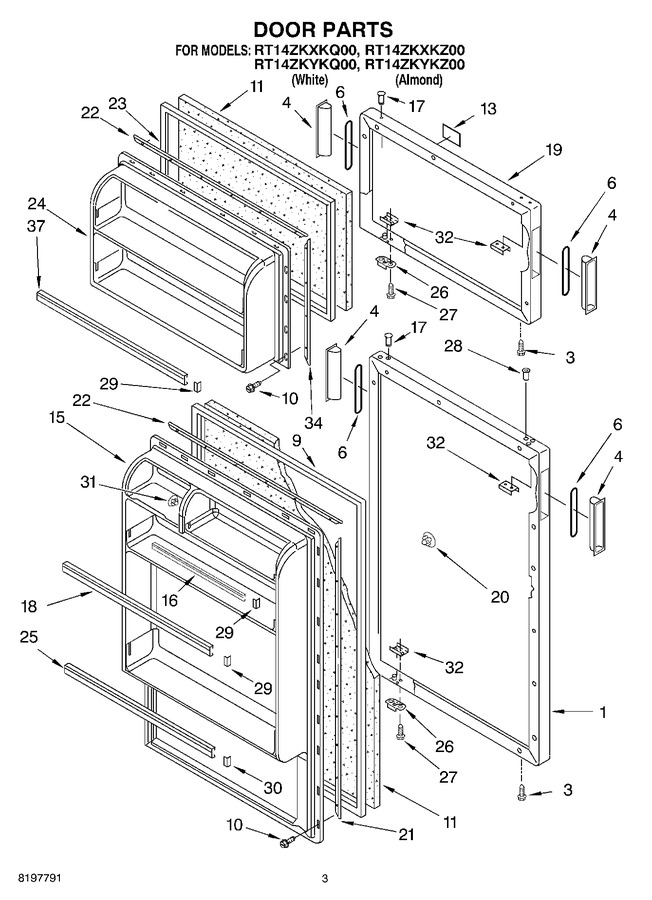

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2201548 | Refrigerator Door Panel (also Order Item 11 & 17) (white) |
|
- | |||||
| 1 | 2201549 | Refrigerator Door Panel (also Order Item 11 & 17) (almond) |
|
- | |||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 4 | WP984493 | Door, Handle (white) (Replaces: 984493) |
|
$ 109.04 | |||||
| 4 | 934508 | Door, Handle (almond) |
|
- | |||||
| 6 | 845758 | Gasket, Handle |
|
- | |||||
| 9 | 2188448A | Door Gasket, Magnetic (Replaces: 2191888) |
|
$ 154.65 | |||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 13 | 2212480 | Nameplate (almond) |
|
- | |||||
| 13 | 2212479 | Nameplate (white) |
|
- | |||||
| 15 | 2173725 | Interior Door Panel (refrigerator) |
|
- | |||||
| 16 | WP2163629 | Trim, Door Shelf (Replaces: 2163630) |
|
Immediately | $ 63.40 | ||||
| 17 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 18 | WP2163629 | Trim, Door (Replaces: 2163631) |
|
Immediately | $ 63.40 | ||||
| 19 | 2201550 | Freezer Door Panel (also Order Item 11 & 17) (white) |
|
- | |||||
| 19 | 2201551 | Freezer Door Panel (also Order Item 11 & 17) (almond) |
|
- | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | 1122551 | Retainer, Gasket |
|
- | |||||
| 22 | 1120614 | Retainer, Gasket |
|
$ 27.51 | |||||
| 23 | 2188462A | Door Gasket, Magnetic (Replaces: 2191889) |
|
Immediately | $ 114.77 | ||||
| 24 | 9790358 | Interior Door Panel (freezer) |
|
- | |||||
| 25 | 2163628 | Trim, Door Shelf |
|
- | |||||
| 26 | 2217944 | Bracket, Door Stop |
|
$ 26.55 | |||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 28 | 2213324 | Hole Plug (almond) |
|
- | |||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | 2163372 | Hole Plug |
|
- | |||||
| 32 | 2183198 | Tap Plate |
|
- | |||||
| 34 | 1122553 | Retainer, Gasket |
|
- | |||||
| 37 | WP2163629 | Trim-door (2) (Replaces: 2163629) |
|
Immediately | $ 63.40 |
