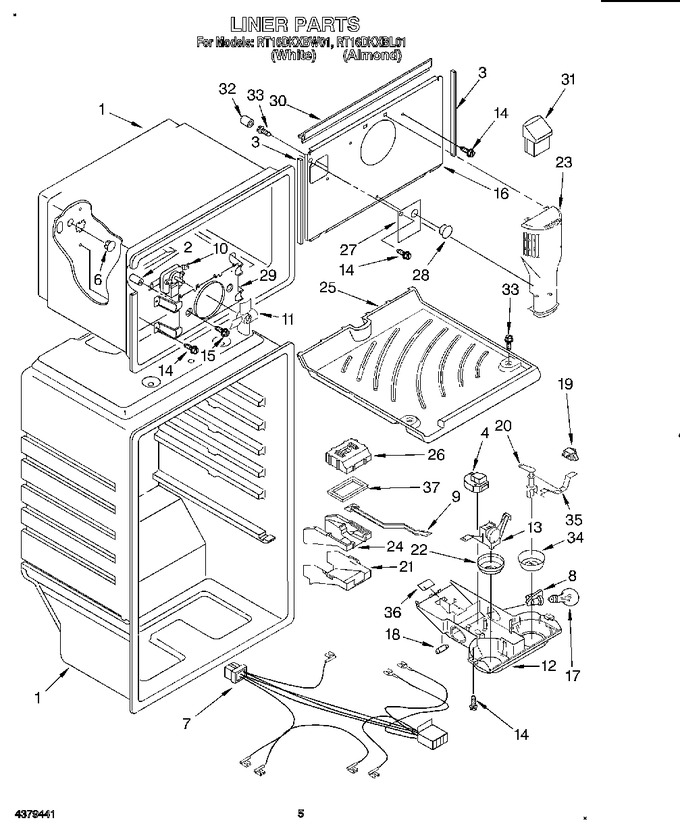

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2166180) |
|
$ 28.12 | |||||
| 4 | 2172691 | Timer, Defrost (8 Hr.) |
|
- | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | 2172542 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2172570 | Damper, Air |
|
- | |||||
| 10 | 2163766 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2172566 | Control Box |
|
- | |||||
| 13 | 4387562 | Thermostat (Replaces: 2172690) |
|
Immediately | $ 333.13 | ||||
| 14 | 486214 | Screw |
|
- | |||||
| 15 | 489412 | Screw |
|
- | |||||
| 16 | 2163816 | Cover-evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (2) (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 18 | 2163802 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1108112) |
|
Immediately | $ 39.09 | ||||
| 20 | 2163809 | Post, Damper |
|
- | |||||
| 21 | 2172560 | Cover, Air Diffuser |
|
- | |||||
| 22 | 2163800 | Control Knob |
|
- | |||||
| 23 | 2172574 | Air Tower |
|
- | |||||
| 24 | 2172564 | Air Diffuser, Bottom |
|
- | |||||
| 25 | 2172679 | Freezer Floor |
|
- | |||||
| 26 | 2172563 | Air Diffuser, Top |
|
- | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 944759) |
|
$ 47.22 | |||||
| 28 | 1103725 | Hole Plug |
|
- | |||||
| 29 | 2163827 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2166192 | Gasket, Evaporator Cover (top) |
|
- | |||||
| 31 | 2174629 | Air Return & Foil Assembly |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.67 | |||||
| 33 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 34 | 2163801 | Knob, Dampener |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2172532) |
|
$ 10.01 | |||||
| 37 | 2172594 | Gasket, Air Diffuser |
|
- |
