SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:

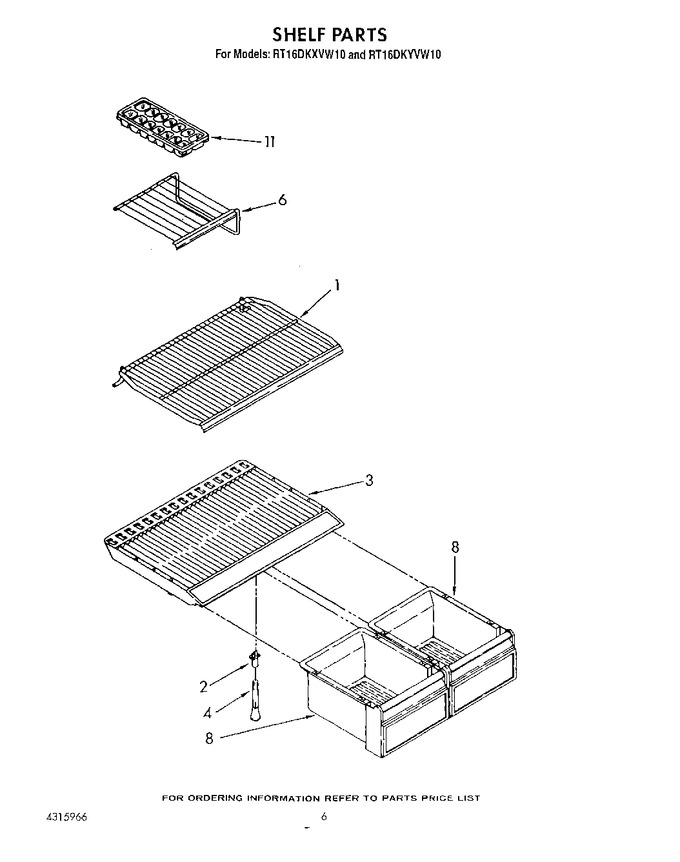

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 943785 | Shelf, Pullout (2) |
|
- | |||||
| 2 | 1103731 | Support, Crisper Cover |
|
- | |||||
| 3 | 1124388 | Cover, Crisper |
|
- | |||||
| 4 | 836410 | Post, Crisper |
|
$ 5.84 | |||||
| 6 | 1120714 | Shelf, Ice Pan |
|
- | |||||
| 8 | 1124389 | Pan, Crisper (2) |
|
- | |||||
| 11 | 8411810 | Tray, Ice (2) |
|
- |
