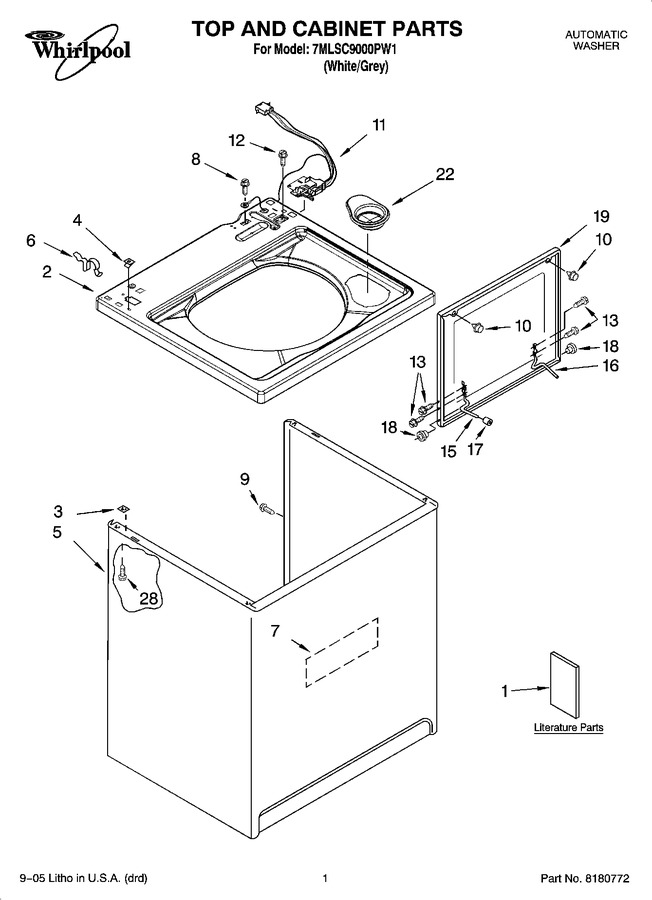

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Water System Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10071230		Installation Instructions		Appelez-nous	-
1	8542633		Wiring Diagram		Appelez-nous	-
1	8539806		Use & Care Guide		Appelez-nous	-
1	8558605		Energy Guide (mexico)		Appelez-nous	-
1	8558599		Feature Sheet		Appelez-nous	-
2	3955792		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
5	63424		Cabinet				$ 370.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
7	3976348		Cabinet- Sound Dampener				$ 37.92
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
9	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
10	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
11	WP8054980		Switch, Lid   (Replaces: 8054980)			Immediately	$ 154.77
12	3400611		Screw, Lid Switch (2)		Appelez-nous	-
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 355274)			Immediately	$ 7.19
15	8055257		Hinge, Lid (l.h.)				$ 6.31
16	8055256		Hinge, Lid (r.h.)				$ 23.30
17	19119		Bumper, Lid Hinge				$ 5.75
18	8319539		Bearing, Lid Hinge (2)				$ 5.51
19	8541777		Lid		Appelez-nous	-
22	8566266		Dispenser, Bleach				$ 39.81
28	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.82
