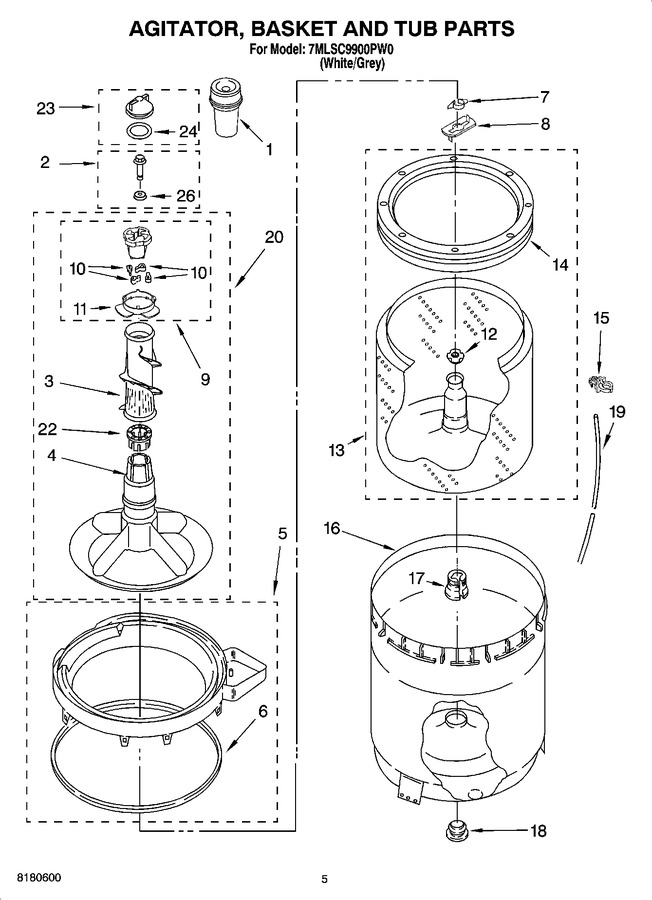

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63580 | Dispenser |
|
Immediately | $ 2.63 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP3363003 | Clothes Mover (Replaces: 3363003) |
|
Immediately | $ 245.26 | ||||
| 4 | WP3951632 | Agitator (Replaces: 3951632) |
|
Immediately | $ 127.99 | ||||
| 5 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 222.23 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 28.25 | ||||
| 7 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 23.56 | |||||
| 8 | WP8543666 | Washer, Agitator (Replaces: 3355921) |
|
Immediately | $ 11.72 | ||||
| 9 | 285809 | Cam Driven (Replaces: 3951682) |
|
Immediately | $ 31.12 | ||||
| 10 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 11 | WP3952374 | Bearing, Driven Cam (Replaces: 3952374) |
|
$ 7.85 | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 13 | W10389328 | Basket & Balance Ring (Replaces: 8526016) |
|
$ 404.58 | |||||
| 14 | WP387240 | Balance Ring (Replaces: 8519788) |
|
Immediately | $ 182.05 | ||||
| 15 | 2219077 | Clip, Pressure Switch Hose |
|
$ 61.18 | |||||
| 16 | 63849 | Tub |
|
$ 291.70 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 20 | 285565 | Agitator (complete) (Replaces: 3951744) |
|
Immediately | $ 259.89 | ||||
| 22 | WP3951608 | Spacer, Thrust (Replaces: 3951608) |
|
Immediately | $ 7.64 | ||||
| 23 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 12.40 | ||||
| 24 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 26 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 |
