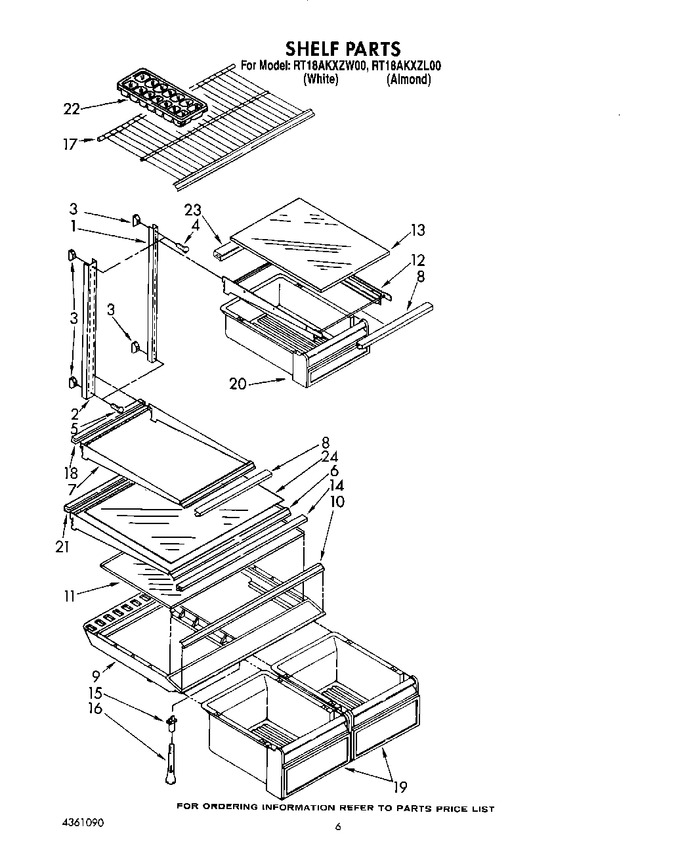

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111807		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	489345		Screw,		Appelez-nous	-
5	WP488163		Screw,   (Replaces: 488163)				$ 7.92
6	1111848		Shelf, Wire Cantilever Full Shelf		Appelez-nous	-
7	1111846		Shelf, Cantilever		Appelez-nous	-
8	1124402		Trim, Shelf		Appelez-nous	-
9	1124326		Crisper Cover		Appelez-nous	-
10	1109419		Trim, Crisper Cover		Appelez-nous	-
11	1124327		Glass, Crisper Cover		Appelez-nous	-
12	1111774		Pan Shelf, Cantilever		Appelez-nous	-
13	1124406		Glass, Shelf		Appelez-nous	-
14	1124404		Trim, Shelf		Appelez-nous	-
15	1103731		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	944734		Shelf, Freezer		Appelez-nous	-
18	1120791		Reflector		Appelez-nous	-
19	1124328		Pan, Crisper		Appelez-nous	-
20	1124336		Pan, Meat		Appelez-nous	-
21	1120794		Reflector		Appelez-nous	-
22	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
23	1111810		Retainer, Glass Shelf		Appelez-nous	-
24	2152401		Shelf, Glass		Appelez-nous	-
