SELECT A DIAGRAM

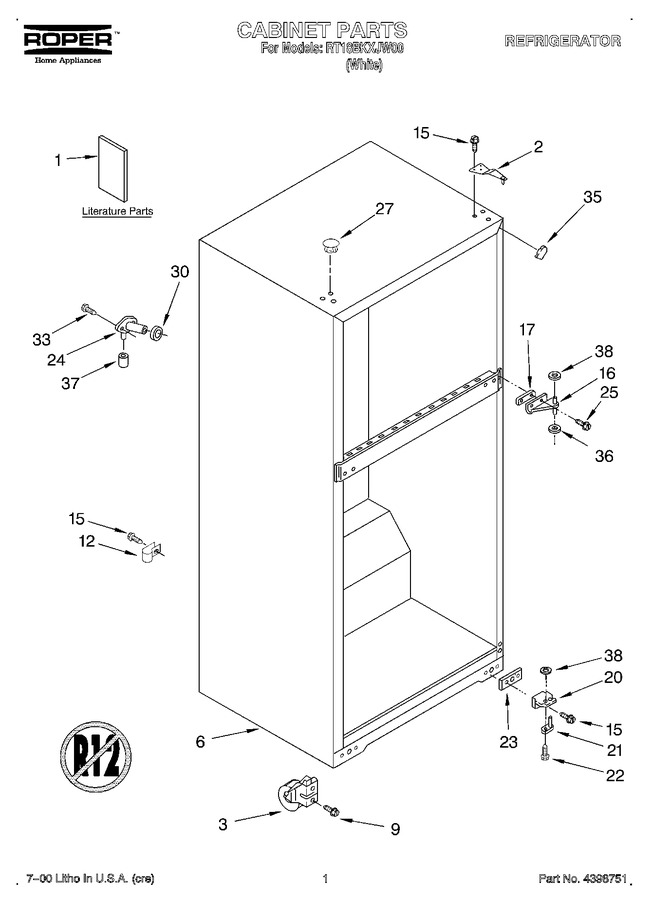

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2213900		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2214037		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2213774		Energy Label		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	2201555		Roller-front		Appelez-nous	-
6	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	2222100		Screw   (Replaces: 2201556)				$ 104.80
12	549193		Clamp-cord				$ 14.06
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Hinge, Center   (Replaces: 2166037)				$ 78.16
17	2166043		Shim, Hinge Center   (Replaces: 2183143)				$ 69.76
20	WP2325482		Hinge Butt   (Replaces: 2166094)			Immediately	$ 76.19
21	9791682		Hinge-pin Bott.				$ 26.60
22	488714		Screw				$ 5.48
23	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
24	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
25	489498		Screw		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 21.78
30	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
33	WPW10141645		Screw, 8 X 1/2 A   (Replaces: 489084)				$ 7.67
35	W10859322		Corner Filler   (Replaces: 2166003)				$ 7.70
36	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
37	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.26
38	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91

    View Diagram in Separate Window       Print Part List
