SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door

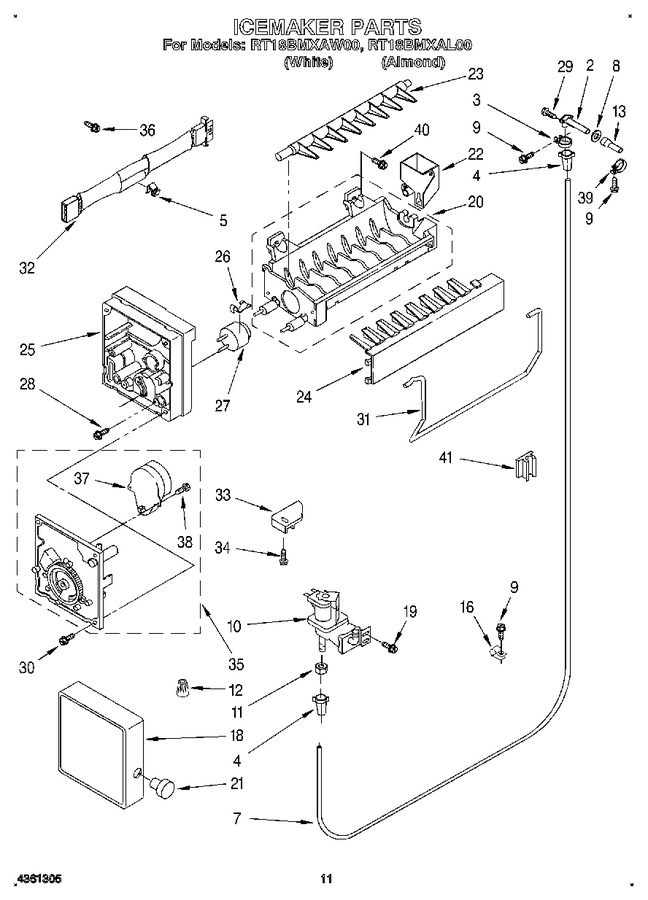

08 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 2154070)			Immediately	$ 12.59
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
7	W10823511		Tube Water   (Replaces: 937669)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
10	WP2315576		Valve, Solenoid   (Replaces: 2155063)			Immediately	$ 95.98
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	227991		Connector Wire		Appelez-nous	-
13	939027		Tube, Water Inlet		Appelez-nous	-
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
18	WPW10289690		Cover   (Replaces: 627993)			Immediately	$ 8.82
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
21	627992		Knob		Appelez-nous	-
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 627788)				$ 90.35
25	WP2195914		Support   (Replaces: 627790)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 114.64
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 14.04
29	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 88.76
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 25, 28, 29, 30, 37, & 38)   (Replaces: 628366)			Immediately	$ 110.07
36	486214		Screw 8-15 X 1/2		Appelez-nous	-
37	W10190935		Motor   (Replaces: 628258)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
39	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
40	WP488163		Screw, 8-18 X 1/2   (Replaces: 488208)				$ 7.92
41	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
41	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
41	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
41	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
41	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
41	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
41	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
41	W11501419		Clip-fill Tube   (Replaces: 2154101)			Immediately	$ 12.10
41	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
41	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
41	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
41	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
41	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
41	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
41	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
41	350942		Primer White (13 Oz. Spray Can)				$ 94.14
41	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
41	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
41	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
41	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
41	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
41	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
41	833938		Kit, Terminal Connector				$ 8.47
41	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
41	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	LIT2163294		Energy Guide		Appelez-nous	-
	1129316		Eckmf90			Immediately	$ 149.11
	1117510		Torx Key				$ 5.84
	LIT4361305		Parts List		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
	LIT2163204		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
