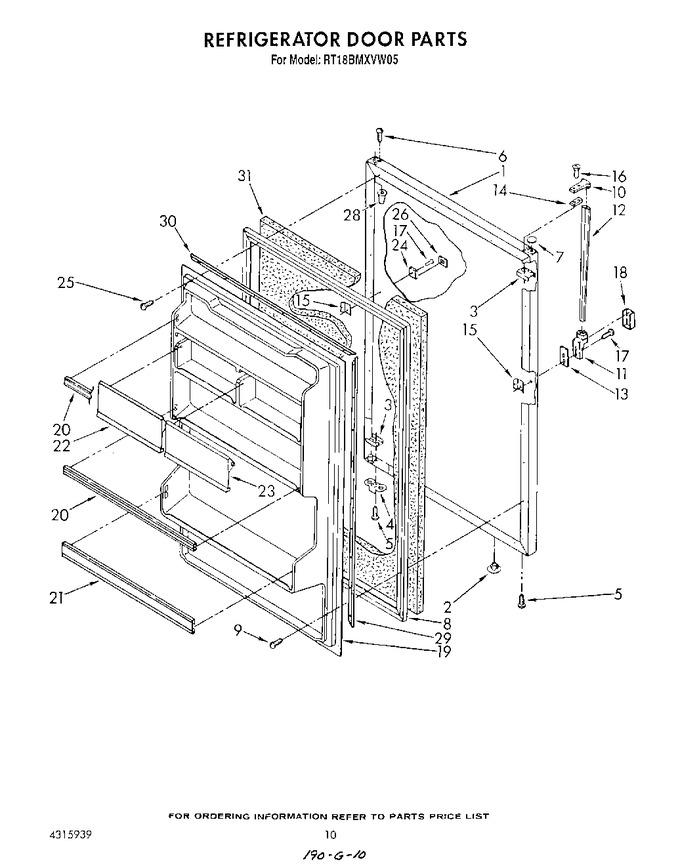

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1104634 | Panel, Refrigerator Door (golden Harvest) |
|
- | |||||
| 1 | 1104636 | Panel, Refrigerator Door (almond) (also Order Item 31) |
|
- | |||||
| 1 | 1104632 | Panel, Refrigerator Door (white) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 1115910 | Bracket, Door Stop |
|
- | |||||
| 5 | 488930 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-18 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 1122827 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 10 | 944157 | Handle End |
|
- | |||||
| 11 | 935105 | Handle End, Side |
|
$ 32.80 | |||||
| 12 | 1109181 | Handle, Center |
|
- | |||||
| 13 | 935076 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 16 | 488923 | Screw (repair) |
|
- | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 987873 | Screw, Cover |
|
- | |||||
| 19 | 1120634 | Interior Door Panel |
|
- | |||||
| 20 | 1120775 | Trim, Door (2) |
|
- | |||||
| 21 | 1120776 | Trim, Door |
|
- | |||||
| 22 | 1124410 | Compartment Door, Utility |
|
- | |||||
| 23 | 1124409 | Compartment, Butter Door |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 24 | 1122694 | Hole Plug, Handle (golden Harvest) |
|
- | |||||
| 24 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 25 | WP488729 | Corner Screw (8) (Replaces: 489287) |
|
Immediately | $ 8.28 | ||||
| 28 | 509929 | Cap, Hinge Sleeve (2) |
|
- | |||||
| 29 | 1120615 | Gasket Retainer, Side (2) |
|
- | |||||
| 30 | 1120616 | Gasket Retainer, Top & Bottom (2) |
|
- | |||||
| 31 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- |
