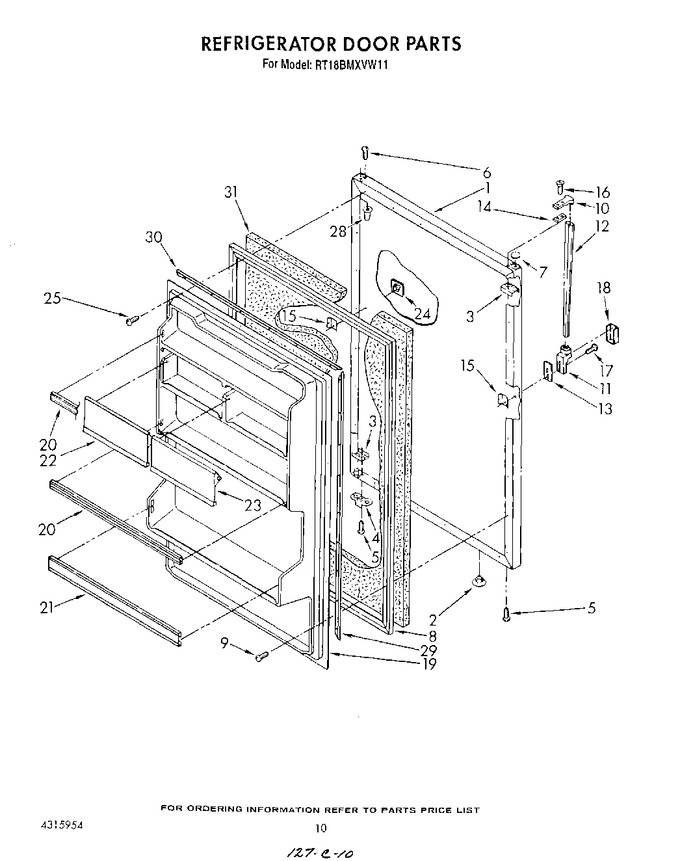

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104634		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1104636		Panel, Refrigerator Door (almond) (also Order Item 31)		Appelez-nous	-
1	1104632		Panel, Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	488930		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw, 8-18 X 1/2   (Replaces: 489028)				$ 7.94
6	488930		Screw (repair)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.80
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1122827		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
10	944157		Handle End		Appelez-nous	-
11	935105		Handle End, Side				$ 32.80
12	1109181		Handle, Center		Appelez-nous	-
13	935076		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
16	488923		Screw (repair)		Appelez-nous	-
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	987873		Screw, Cover		Appelez-nous	-
19	1120634		Interior Door Panel		Appelez-nous	-
20	1120775		Trim, Door (2)		Appelez-nous	-
21	1120776		Trim, Door		Appelez-nous	-
22	1124410		Compartment Door, Utility		Appelez-nous	-
23	1124409		Compartment, Butter Door		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.40
24	1122694		Hole Plug, Handle (golden Harvest)		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.79
28	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
29	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
30	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
31	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
