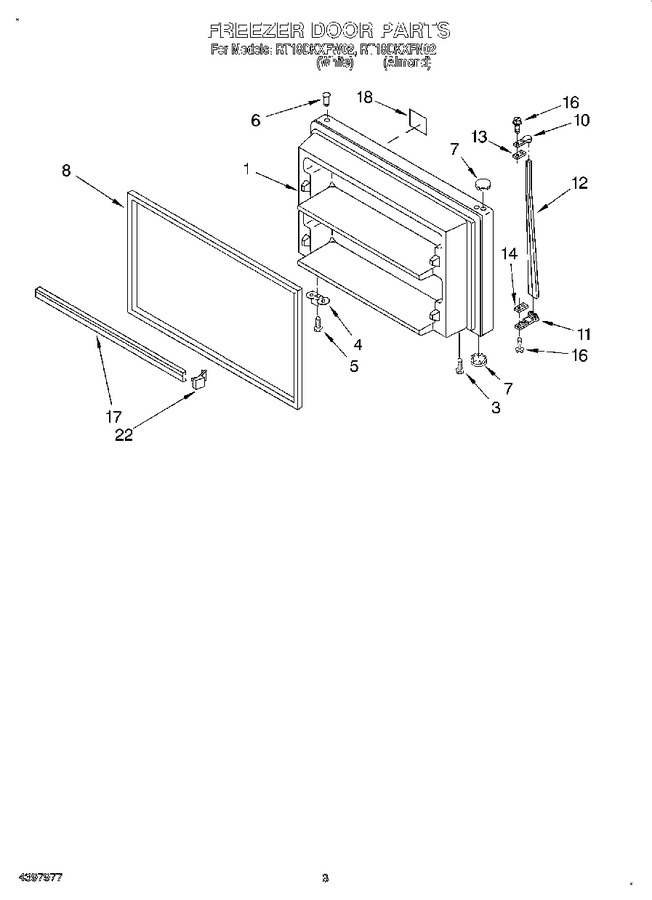

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2182487 | Freezer Door (includes No.6 & No.8) (white) |
|
- | |||||
| 1 | 2182491 | Freezer Door (includes No.6 & No.8) (almond) |
|
- | |||||
| 3 | WP8281206 | Washer (Replaces: 489028) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159327 | Door Gasket, Magnetic |
|
Immediately | $ 164.58 | ||||
| 10 | 1108955 | Handle End, Top |
|
- | |||||
| 11 | 819342 | Handle End (Replaces: 1108952) |
|
Immediately | $ 47.96 | ||||
| 12 | 2173344 | Handle, Center |
|
- | |||||
| 13 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 14 | 943188 | Spacer, Handle Door Panel |
|
$ 7.80 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | 2195946 | Trim, Door Shelf (2) |
|
$ 46.58 | |||||
| 18 | 2163676 | Nameplate |
|
$ 36.02 | |||||
| 22 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 100 | 2182569 | Featurepak (includes 17,22) Also See Ref. Dr. & Shelf Pgs. |
|
- |
