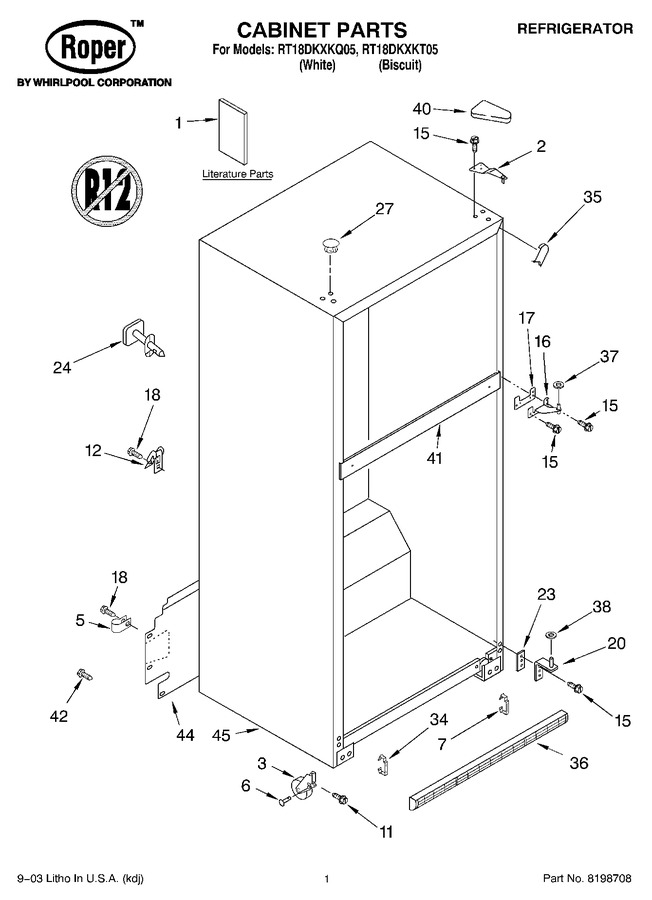

01 - Cabinet Parts
02 - Freezer Door Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Liner Parts
06 - Unit Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2225665 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT2225759 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT2225410 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2225416 | Literature Parts (customer Instructions) |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 7 | 2254385 | Clip-grille |
|
$ 84.64 | |||||
| 11 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.19 | |||||
| 12 | 549193 | Clamp-cord |
|
$ 13.39 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 87.64 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.89 | |||||
| 18 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.83 | ||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2189194) |
|
$ 8.47 | |||||
| 23 | 2172743 | Shim, Bottom Hinge |
|
$ 33.55 | |||||
| 24 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 27 | 2200924 | Hole Plug (6) (biscuit) |
|
- | |||||
| 34 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 35 | WPW10283959 | Corner Filler (2) (white) (Replaces: 2201014) |
|
$ 7.82 | |||||
| 35 | W10283958 | Corner Filler (2) (biscuit) (Replaces: 2200926) |
|
$ 24.41 | |||||
| 36 | WP2254386 | Grille (biscuit) (Replaces: 2254389) |
|
$ 94.53 | |||||
| 36 | WP2254386 | Grille (white) (Replaces: 2254386) |
|
$ 94.53 | |||||
| 37 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 38 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 40 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 19.23 | |||||
| 40 | 2213364 | Cover-hinge (biscuit) |
|
$ 17.80 | |||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 42 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 44 | 2221775 | Cover, Unit |
|
- | |||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- |
