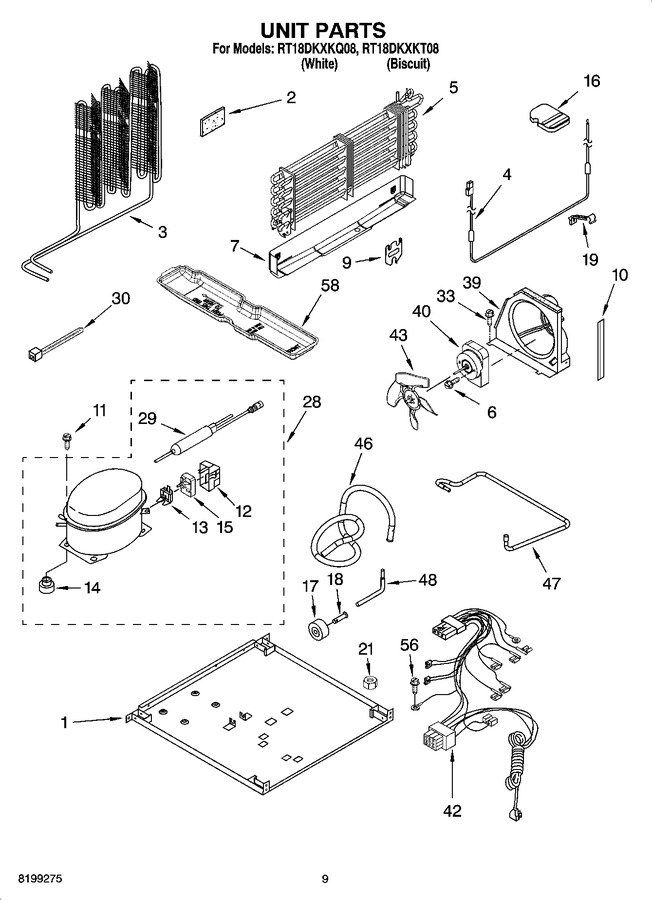

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225597 | Plate, Unit Mounting |
|
- | |||||
| 2 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 3 | 2214960 | Condenser |
|
$ 141.57 | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 104.62 | |||||
| 5 | 2254250 | Evaporator Assy. |
|
$ 234.07 | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 7 | 2254294 | Drain Pan |
|
- | |||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 11 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 12 | WP2162358 | Cover (production) (Replaces: 2162358) |
|
$ 95.29 | |||||
| 12 | WP2162358 | Cover ((service)) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 13 | WP4387938 | Overload (service (includes Relay)) (Replaces: 4387938) |
|
$ 198.58 | |||||
| 13 | WP2302290 | Overload (production) (Replaces: 2302290) |
|
$ 140.22 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | WP2258450 | Start-relay (production Compressor Only) (Replaces: 2258450) |
|
$ 118.46 | |||||
| 16 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 21 | N/A | Nut (not Serviced) |
|
- | |||||
| 28 | W10823815 | Compressor (includes Items 12,13,14,29) (Replaces: 2225647) |
|
$ 707.86 | |||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 33 | 3400518 | Screw |
|
$ 13.63 | |||||
| 39 | 2302249 | Air Baffle |
|
$ 37.70 | |||||
| 40 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 42 | 2187764 | Wire Assembly, Unit |
|
$ 258.93 | |||||
| 43 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 46 | 2205294 | Tube, Discharge |
|
$ 54.65 | |||||
| 47 | 2205293 | Tube, Suction |
|
$ 103.20 | |||||
| 48 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 108.61 | |||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | 8201826 | Evaporator Tray (Replaces: 2300635) |
|
$ 164.78 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | N/A | Refrigerant Charge 3.75 Ozs. (r134a) |
|
- | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 27.77 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| W11700559 | Imkit94 (Replaces: 2171811) |
|
$ 246.03 | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 |
