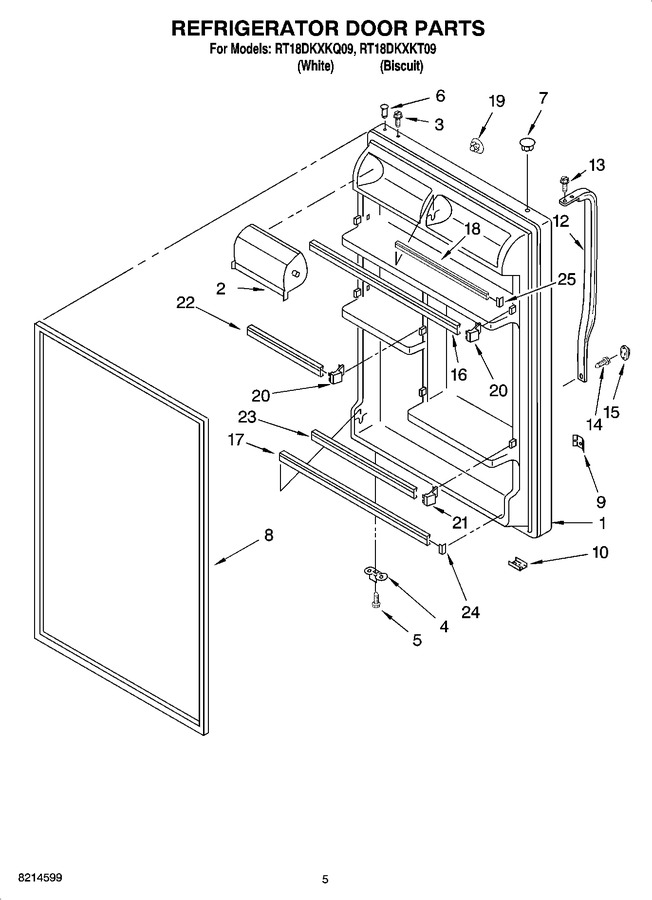

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes Illus. 6,8,9 & 10) (white) |
|
- | |||||
| 1 | 2205285 | Refrigerator Door (includes Illus. 6,8,9 & 10) (biscuit) |
|
- | |||||
| 2 | 2205232 | Compartment Door |
|
- | |||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212649 | Hole Plug, Hinge (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 8 | 2159057 | Door Gasket, Magnetic (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 9 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 10 | 2183198 | Tap Plate |
|
- | |||||
| 12 | WP2202807W | Handle, Door (white) (Replaces: 2202807W) |
|
$ 162.98 | |||||
| 12 | 2202807T | Handle, Door (biscuit) |
|
$ 64.39 | |||||
| 13 | WP489357 | Screw, 8 X 5/8 (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 14 | WP8281146 | Screw, 8 X 1/2 (Replaces: 8281146) |
|
$ 8.18 | |||||
| 15 | 2202819T | Screw Cover (biscuit) |
|
$ 8.02 | |||||
| 15 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 16 | WP2201051 | Trim, Door Shelf (Replaces: 2201051) |
|
$ 115.07 | |||||
| 17 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 136.25 | |||||
| 18 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 19 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 19 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 20 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 21 | WP2195915 | Endcap-trim (2) (Replaces: 2195915) |
|
$ 13.72 | |||||
| 22 | 2201052 | Trim, Door Shelf |
|
$ 28.91 | |||||
| 23 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 24 | WP2156006 | Plug-trim (2) (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 25 | WP2156007 | Plug-trim (2) (Replaces: 2156007) |
|
Immediately | $ 8.03 |
