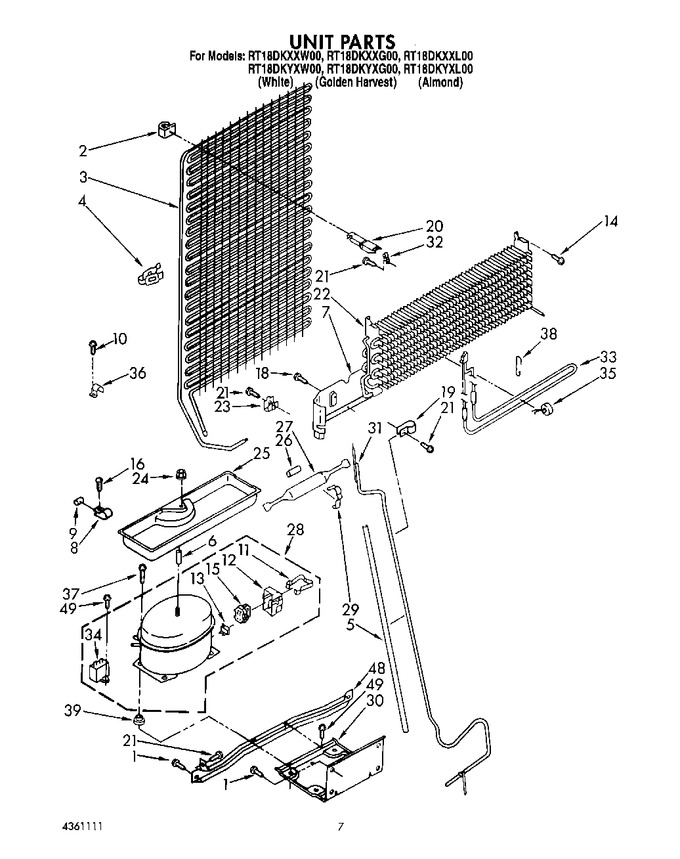

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489427		Screw   (Replaces: 489339)				$ 7.84
2	1103640		Bumper (2)		Appelez-nous	-
3	2154844		Condenser		Appelez-nous	-
4	1105406		Tube Clip (2)		Appelez-nous	-
5	1108073		Sleeve		Appelez-nous	-
6	2154438		Spacer		Appelez-nous	-
7	1108359		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	945593		Dampener		Appelez-nous	-
10	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
11	938384		Strap		Appelez-nous	-
12	1108115		Cover		Appelez-nous	-
13	4387535		Overload (service)   (Replaces: 2154760)				$ 191.05
13	1105172		Overload (production)		Appelez-nous	-
14	WP489174		Screw (2)   (Replaces: 489169)				$ 7.30
15	N/A		Relay (see Overload)		Appelez-nous	-
16	489050		Screw				$ 692.56
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 11.87
19	489151		Tube, Clamp		Appelez-nous	-
20	1100637		Condenser, Stand-off		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	943762		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	1101002		Evaporator Tray		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
28	876765		Tube Kit				$ 90.65
28	W10439652		Compressor (includes Items 11, 12, 13, 15, 34 & 39) (also Order)   (Replaces: 1127543)				$ 442.20
28	482801		Mounting Kit				$ 119.50
29	1127590		Clamp, Dryer		Appelez-nous	-
30	1118781		Unit Mounting Plate		Appelez-nous	-
31	1127721		Exchanger, Heat		Appelez-nous	-
32	1100707		Clip, Stand Off		Appelez-nous	-
33	1127660		Heater, Defrost		Appelez-nous	-
34	2154565		Running Capacitor (service)		Appelez-nous	-
34	WPW10662129		Running Capacitor (production)   (Replaces: 1118581)			Immediately	$ 58.86
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2149849)			Immediately	$ 50.77
36	1105406		Clip, Tube		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
38	1108172		Support, Heater		Appelez-nous	-
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.51
48	1118783		Unit Mounting Rail		Appelez-nous	-
49	876764		Valve, Access(3/16``)			Immediately	$ 95.92
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 137.25
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
49	978026		Valve, Access (5/16``)			Immediately	$ 134.49
