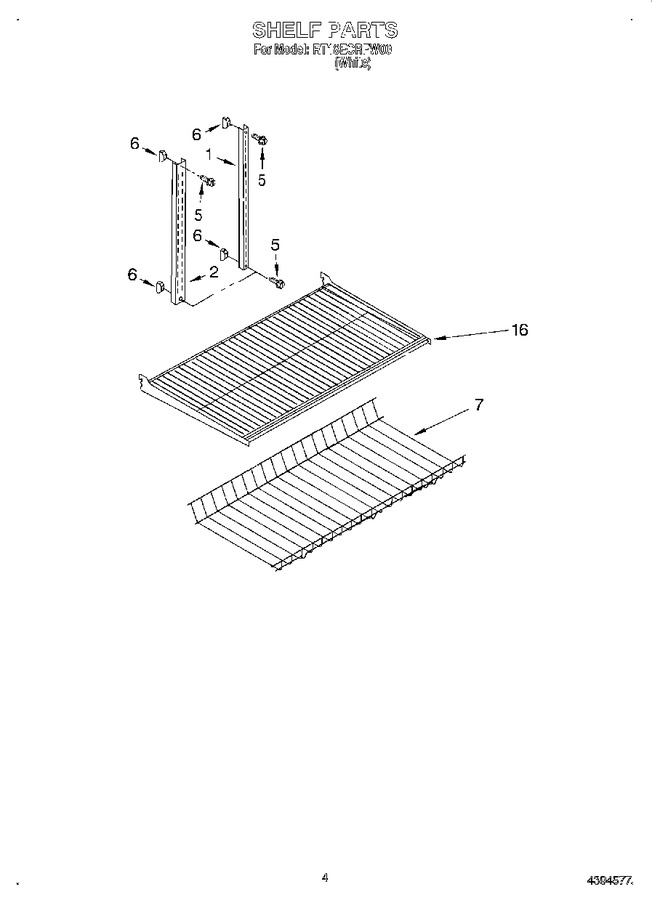

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2163826 | Shelf, Ladder Center |
|
- | |||||
| 5 | W11544659 | Screw (Replaces: 489415) |
|
$ 14.35 | |||||
| 6 | 520965 | Screw, Support |
|
$ 31.35 | |||||
| 7 | 2166210 | Trivet |
|
- | |||||
| 16 | 2163856 | Shelf, Full Cantilever (2) |
|
- |
