SELECT A DIAGRAM
01 - Cabinet, Literature

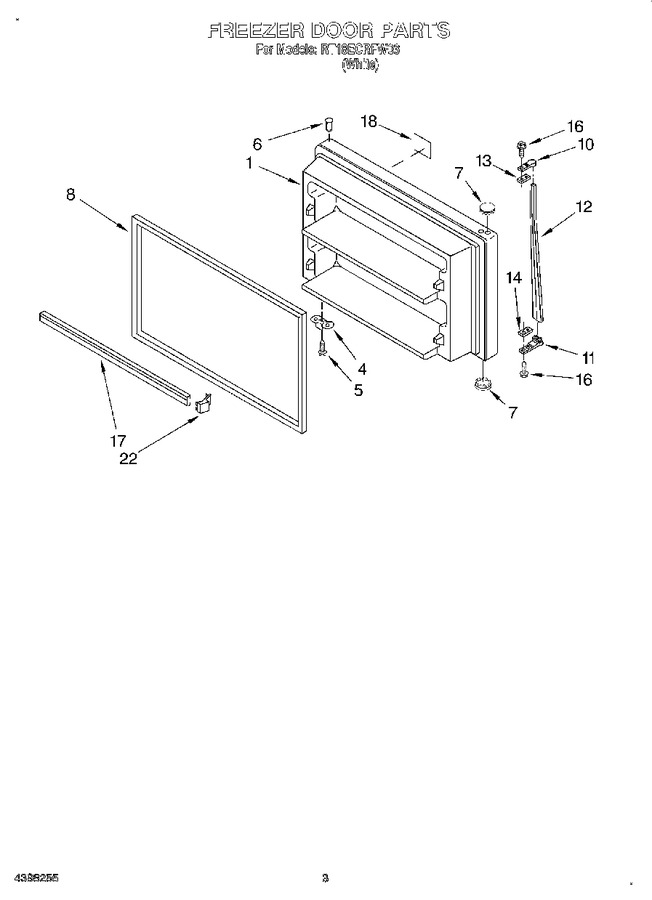

02 - Freezer Door
03 - Shelf
04 - Refrigerator Door
05 - Liner
06 - Unit, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2182487 | Freezer Door (includes No.6 & No.8) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159327 | Door Gasket, Magnetic |
|
Immediately | $ 164.58 | ||||
| 10 | 1108955 | Handle End, Top |
|
- | |||||
| 11 | 819342 | Handle End (Replaces: 1108952) |
|
Immediately | $ 47.96 | ||||
| 12 | 2173344 | Handle, Center |
|
- | |||||
| 13 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 14 | 943188 | Spacer, Handle Door Panel |
|
$ 7.80 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | 2201050 | Trim, Door Shelf (2) |
|
$ 43.26 | |||||
| 18 | 2163676 | Nameplate |
|
$ 36.02 | |||||
| 22 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 100 | 2200785 | Featurepak (includes 17, 22) Also See Ref.dr. & Shelf Pgs. |
|
- |
