SELECT A DIAGRAM

02 - Cabinet


03 - Shelf


04 - Liner


05 - Compartment Separator


06 - Freezer Door


07 - Refrigerator Door

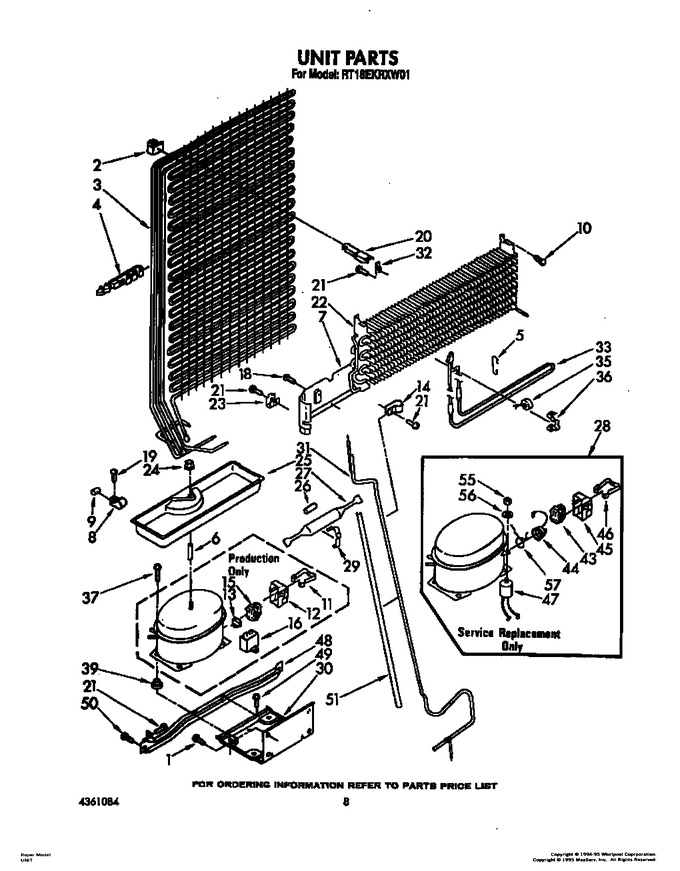

08 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP965173		Screw, 8 X 1/2 (2)   (Replaces: 487248)			Immediately	$ 11.87
2	1103640		Bumper (2)		Appelez-nous	-
3	1127615		Condenser & Precooler Assembly		Appelez-nous	-
4	1118652		Clip, Tube (2)		Appelez-nous	-
5	1108172		Support, Heater		Appelez-nous	-
6	2154438		Spacer		Appelez-nous	-
7	1108359		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	945593		Dampener		Appelez-nous	-
10	WP489174		Screw (2)   (Replaces: 489169)				$ 7.30
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	1105172		Overload		Appelez-nous	-
14	489151		Clamp		Appelez-nous	-
15	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
16	WPW10662129		Running Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 11.87
19	489050		Screw				$ 692.56
20	1100636		Condenser, Stand-off		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	943762		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	1101002		Evaporator Tray		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 55, 56, & 57) (also Order 482801 Mounting Kit & 87676		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	1118781		Unit Mounting Plate		Appelez-nous	-
31	1127721		Exchanger, Heat		Appelez-nous	-
32	1100707		Clip, Stand Off		Appelez-nous	-
33	1127660		Heater, Defrost		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2149849)			Immediately	$ 50.77
36	1100637		Clamp		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	483037		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	1118783		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
50	WP489427		Screw   (Replaces: 489339)				$ 7.84
51	1108073		Sleeve		Appelez-nous	-
55	489142		Nut		Appelez-nous	-
56	489143		Washer		Appelez-nous	-
57	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
57	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
57	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
57	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
57	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
57	1114190		Overload Spring		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 134.49
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 137.25
57	876764		Valve, Access(3/16``)			Immediately	$ 95.92
57	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
57	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
57	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
57	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
57	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
57	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
57	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
57	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
57	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
57	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
57	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
57	833938		Kit, Terminal Connector				$ 8.47
	1117510		Torx Key				$ 5.84
	1129316		Imkit   (Replaces: 1129303)			Immediately	$ 149.11
	LIT4361084		Parts List		Appelez-nous	-
	LIT2152383		Care & Use Guide		Appelez-nous	-
	LIT2152381		Energy Label		Appelez-nous	-
	LIT2149680		Service & Wiring Sheet		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
