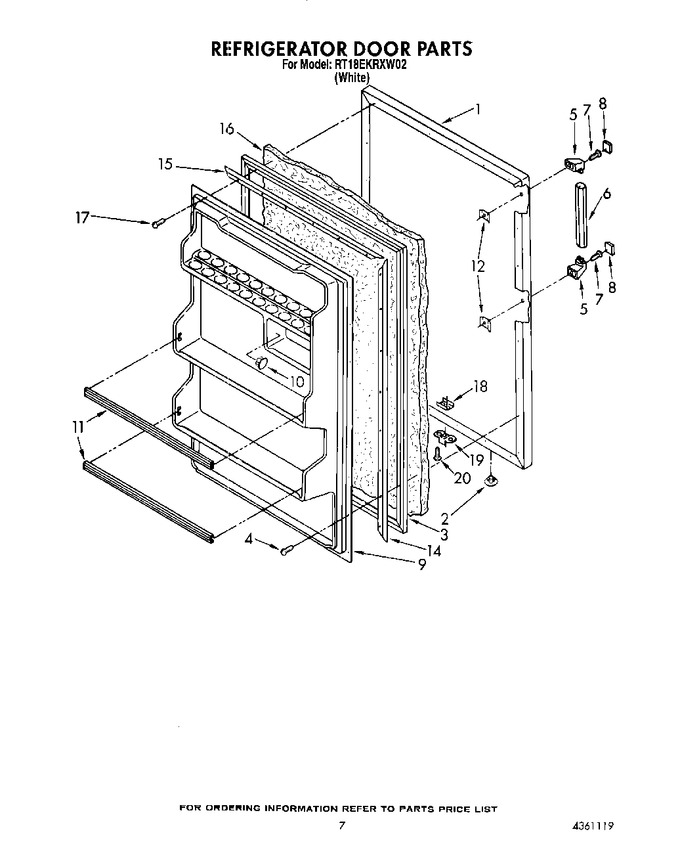

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106162		Panel, Refrigerator Door (also Order Item 16) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	1122827		Door Gasket, Magnetic		Appelez-nous	-
4	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
4	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
5	1124591		End Cap, Handle (2)		Appelez-nous	-
6	1100023		Handle, Center		Appelez-nous	-
7	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
8	934724		Insert, Screw Cover		Appelez-nous	-
9	1120630		Interior Door Panel		Appelez-nous	-
10	941765		Hole, Plug (2)		Appelez-nous	-
11	1116062		Trim, Door Shelf (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
14	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
15	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
16	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
17	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
18	943185		Tap Plate		Appelez-nous	-
19	1115910		Stop-door		Appelez-nous	-
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
