SELECT A DIAGRAM

01 - Cabinet

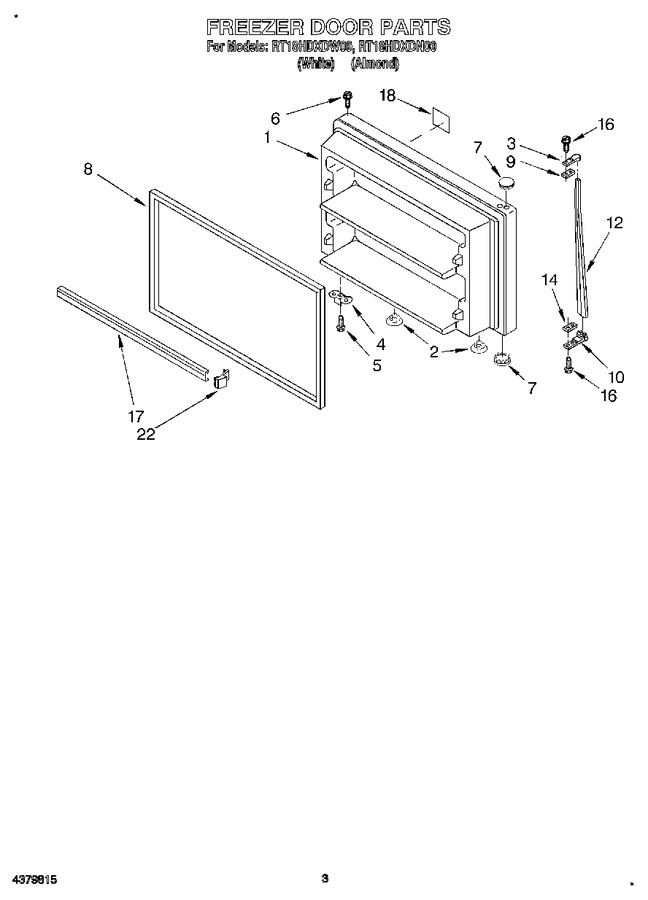

02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159270		Freezer Door (includes No.8) (white)		Appelez-nous	-
1	2159271		Freezer Door (includes No.8) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	1108955		End Cap, Top		Appelez-nous	-
4	2159367		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2159327		Door Gasket, Magnetic (service)			Immediately	$ 164.58
9	943187		Shim				$ 25.14
10	819342		Handle End   (Replaces: 1108952)			Immediately	$ 47.96
12	2173344		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door Panel				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2163678)				$ 124.32
18	2163676		Nameplate				$ 36.02
22	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 13.25
