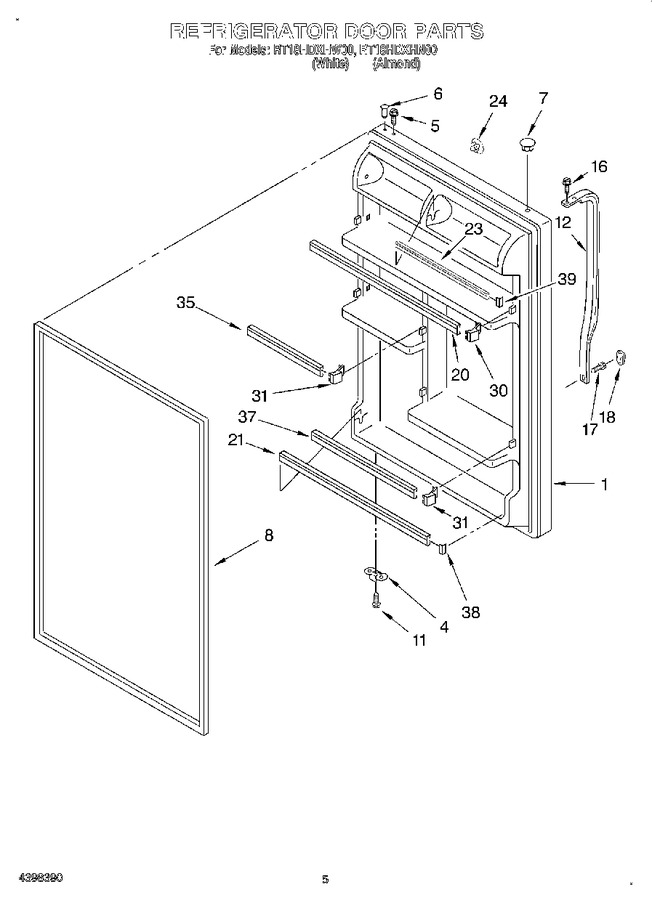

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183949 | Refrigerator Door (includes No.6 & No.8) (almond) |
|
- | |||||
| 1 | 2183948 | Refrigerator Door (includes No.6 & No.8) (white) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2159057 | Door Gasket, Magnetic |
|
Immediately | $ 164.66 | ||||
| 11 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 12 | WP2202807W | Handle, Door (white) (Replaces: 2202807W) |
|
$ 162.98 | |||||
| 12 | 2202807N | Handle, Door (almond) |
|
- | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 18 | 2202819N | Screw Cover (almond) |
|
- | |||||
| 20 | WP2201051 | Trim, Door Shelf (Replaces: 2201051) |
|
$ 115.07 | |||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 136.25 | |||||
| 23 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 24 | 2189008 | Hole Plug, Handle (almond) |
|
- | |||||
| 30 | WP2195915 | Endcap-trim (2) (Replaces: 2195915) |
|
$ 13.72 | |||||
| 31 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 35 | 2201052 | Trim, Door Shelf |
|
$ 28.91 | |||||
| 37 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 38 | WP2156006 | Plug-trim (2) (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 39 | WP2156007 | Plug-trim (2) (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 100 | 2204792 | Featurepak (includes 20, 21, 23, 30, 35, 37, 38, 39) Also See Frz.dr. & Shelf Pgs. |
|
- |
