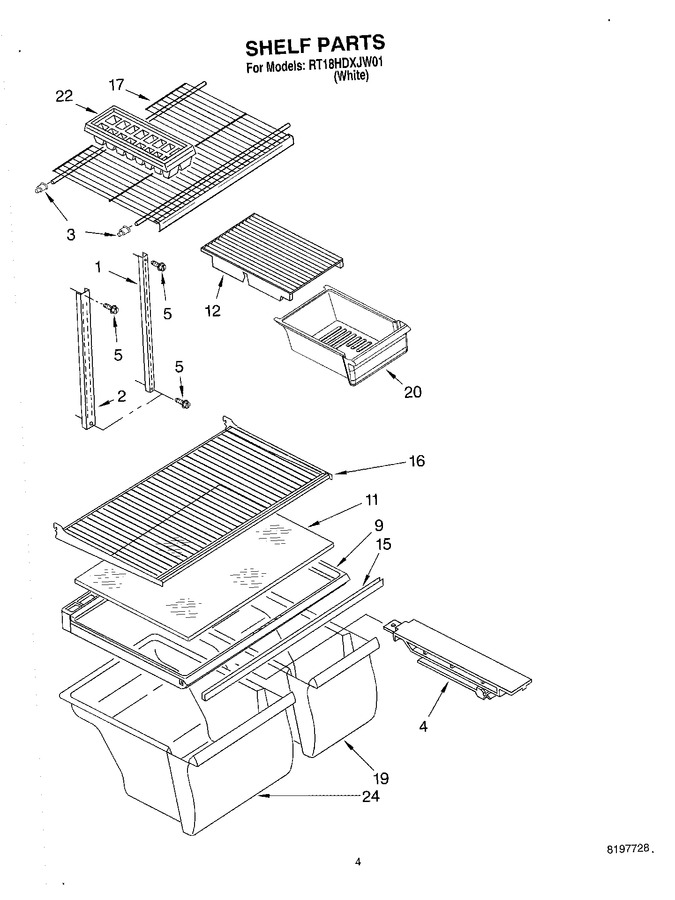

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2202821 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 4 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 34.74 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 9 | WP2314548 | Cover, Crisper (Replaces: 2195342) |
|
$ 247.46 | |||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2169921) |
|
$ 246.60 | |||||
| 12 | 2163848 | Pan, Cover |
|
$ 71.41 | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 97.22 | |||||
| 16 | 2163856 | Shelf, Full Cantilever |
|
- | |||||
| 17 | 2189453 | Shelf, Freezer |
|
- | |||||
| 19 | W10856580 | Pan, Crisper (Replaces: 2166257) |
|
Immediately | $ 168.60 | ||||
| 20 | 2200920K | Pan, Meat |
|
$ 81.92 | |||||
| 22 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 45.56 | ||||
| 24 | W10854037 | Pan, Crisper (Replaces: 2166256) |
|
Immediately | $ 170.66 |
