SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Freezer Door
03 - Shelf
04 - Refrigerator Door
05 - Liner
06 - Unit, Optional
SELECT A DIAGRAM
New Model Search:

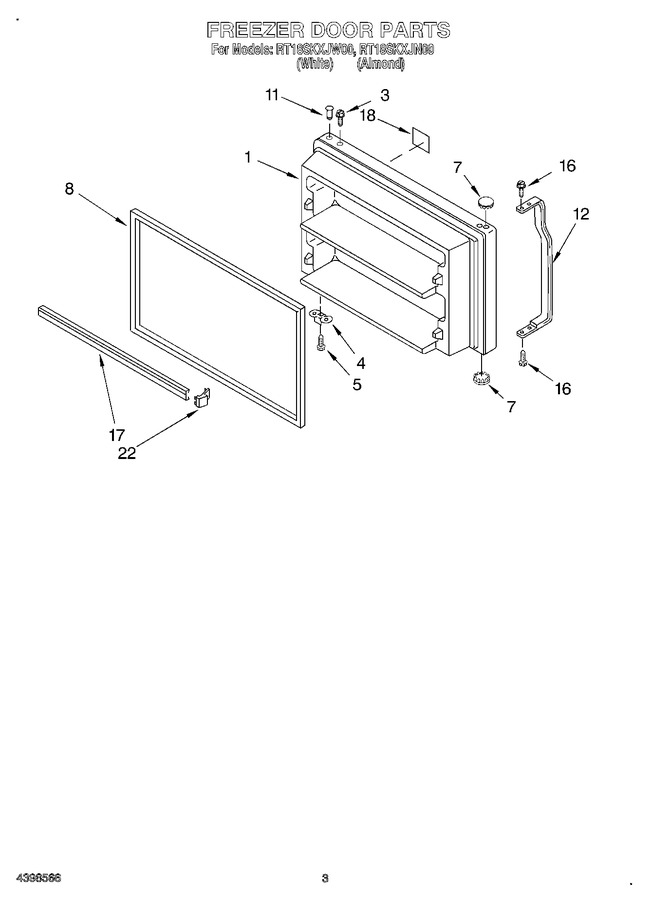

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2182487 | Freezer Door (includes No.8 & No.11) (white) |
|
- | |||||
| 1 | 2182491 | Freezer Door (includes No.8 & No.11) (almond) |
|
- | |||||
| 3 | WP8281206 | Screw, 8-18 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159327 | Door Gasket, Magnetic (service) |
|
Immediately | $ 164.58 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 12 | 2202806N | Handle, Center (almond) |
|
- | |||||
| 12 | WP2202806W | Handle, Center (white) (Replaces: 2202806W) |
|
$ 155.40 | |||||
| 16 | WP489357 | Screw 8-18 X 5/8 (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | 2201050 | Trim, Door Shelf (2) |
|
$ 43.26 | |||||
| 18 | 2200504 | Nameplate (almond) |
|
- | |||||
| 18 | 2200503 | Nameplate (white) |
|
- | |||||
| 22 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 |
