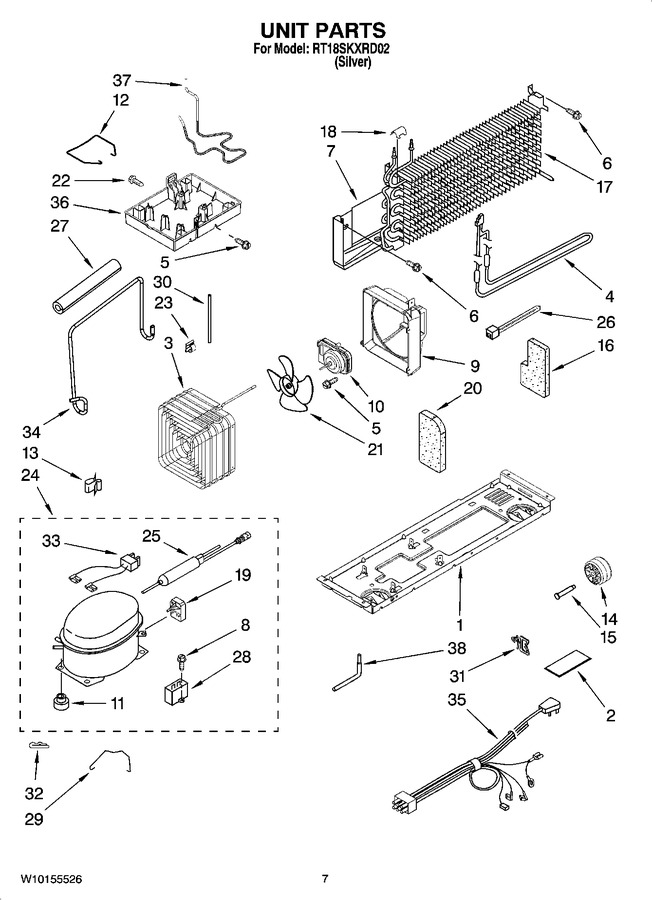

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10127456) |
|
$ 132.10 | |||||
| 2 | 2266360 | Shield,electrical |
|
- | |||||
| 3 | W10140200 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | 8533919 | Screw |
|
- | |||||
| 9 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 85.17 | |||||
| 10 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 81.89 | ||||
| 11 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.52 | |||||
| 11 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 12 | 2264835 | Clip, Condenser |
|
- | |||||
| 13 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 14 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 15 | W11594405 | Axle, Rivet (Replaces: 981126) |
|
Immediately | $ 17.21 | ||||
| 16 | 2262191 | Wedge-evaporator |
|
- | |||||
| 17 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 299.90 | ||||
| 18 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 19 | WPW10197428 | Start- Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10128791) |
|
Immediately | $ 84.30 | ||||
| 20 | 2262192 | Wedge-evaporator |
|
- | |||||
| 21 | 2264129 | Fan Blade |
|
Immediately | $ 98.99 | ||||
| 22 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.11 | |||||
| 23 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.89 | ||||
| 24 | W10233960 | Compressor (includes Items 11, 25, 28, 33) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10141544) |
|
Immediately | $ 485.41 | ||||
| 25 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 25 | W10843121 | Drier (production) (Replaces: 2320731) |
|
Immediately | $ 51.42 | ||||
| 26 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 27 | 2264838 | Sleeve |
|
$ 83.05 | |||||
| 28 | WPW10662129 | Capacitor (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 28 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 29 | W10141545 | Bale Strap |
|
- | |||||
| 30 | 2264278 | Tube, Drain |
|
$ 71.79 | |||||
| 31 | 2266467 | Clip, Harness |
|
- | |||||
| 32 | 24364001 | Clip, Compressor |
|
- | |||||
| 33 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 7.66 | |||||
| 34 | W10140199 | Extension, Tube-heat |
|
- | |||||
| 35 | 2263753 | Wire Assy. Unit |
|
$ 64.42 | |||||
| 36 | WP2263928 | Evaporating Tray (Replaces: 2263928) |
|
$ 134.12 | |||||
| 37 | W10140197 | Tube, Discharge (incl. Pre-cooler) |
|
- | |||||
| 38 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 38 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 38 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 38 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 38 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 38 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 38 | W10140201 | Tube, Process |
|
- | |||||
| 38 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 |
