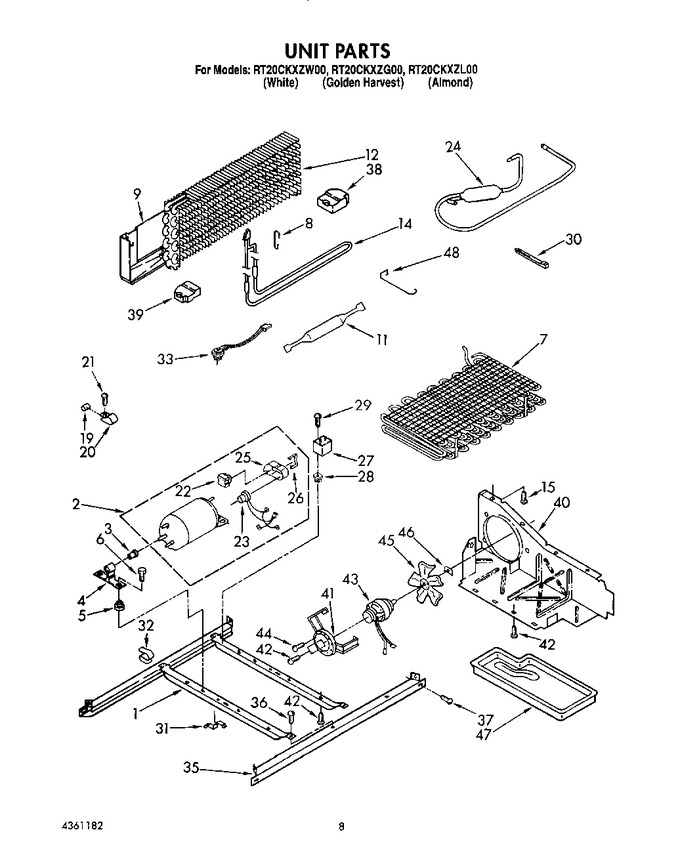

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2154451		Unit, Frame		Appelez-nous	-
2	4317834		Compressor Kit Includes Items (22, 23, 25, 26)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor (4)		Appelez-nous	-
6	489334		Screw (4)		Appelez-nous	-
7	2154009		Condenser Assembly		Appelez-nous	-
8	2149120		Support, Heater		Appelez-nous	-
9	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
11	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
12	2153978		Evaporator		Appelez-nous	-
14	2154736		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
19	2149670		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 22.22
22	1108066		Relay, Order Overload To Obtain Relay. Key No. 23 (relay) (for Service Compressor Only)		Appelez-nous	-
23	1108067		Overload, (for Service Compressor Only)		Appelez-nous	-
23	2154403		Overload		Appelez-nous	-
24	2154034		Muffler		Appelez-nous	-
25	1105221		For Service Compressor Only		Appelez-nous	-
25	2154452		Terminal Cover		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
28	509812		Screw Grommet		Appelez-nous	-
29	WP489478		Screw 8 X 5/8   (Replaces: 489242)				$ 8.18
30	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149643)			Immediately	$ 47.89
35	2149717		Unit, Rail		Appelez-nous	-
36	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
37	489340		Screw (4)		Appelez-nous	-
38	1118805		Support (r.s.)		Appelez-nous	-
39	1118806		Support (l.s.)		Appelez-nous	-
40	1127938		Air, Baffle		Appelez-nous	-
41	548695		Fan, Mounting Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8		Appelez-nous	-
43	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 109.14
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
45	1108179		Fan, Blade				$ 49.54
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
48	876764		Valve, Access(3/16``)			Immediately	$ 95.92
48	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
48	978028		Valve, Access (1/2)		Appelez-nous	-
48	978029		Valve Access (5/8``)				$ 93.85
48	978030		Valve, Access (3/4``)				$ 137.25
48	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
48	1105612		Guard, Fan				$ 42.61
48	978026		Valve, Access (5/16``)			Immediately	$ 134.49
