01 - Cabinet Parts


02 - Freezer Door Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Liner Parts

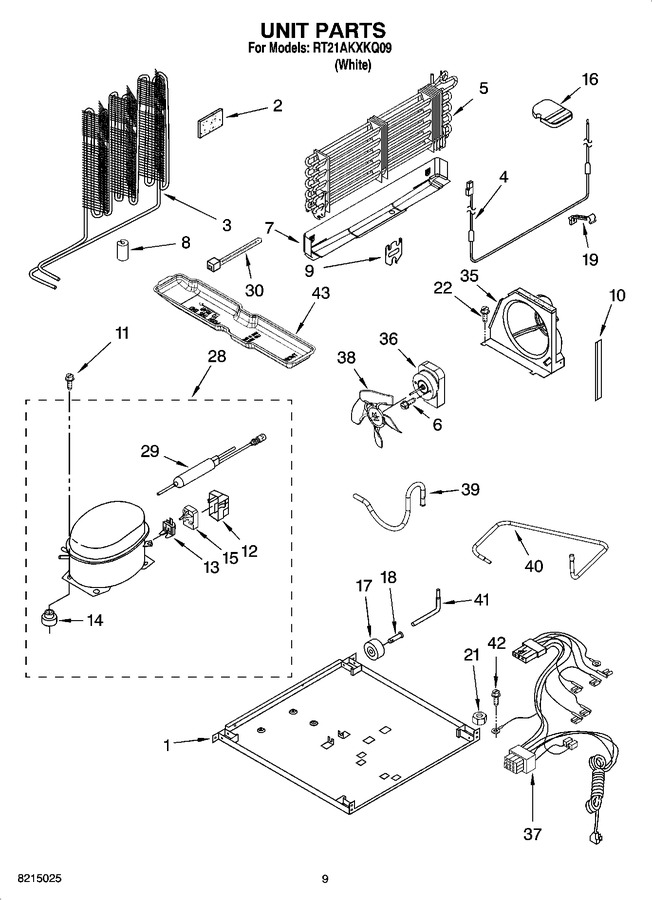

06 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225596		Plate, Unit Mounting		Appelez-nous	-
2	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.77
3	2214960		Condenser				$ 141.57
4	WPW10140847		Heater, Defrost   (Replaces: 2314157)				$ 167.34
5	2254249		Evaporator Assy				$ 239.15
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
7	2254295		Drain Pan				$ 74.91
8	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 8.09
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	876811		Screw   (Replaces: 489373)				$ 7.79
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 95.29
12	WP2162358		Production   (Replaces: 2162358)				$ 95.29
13	WP2302290		Production   (Replaces: 2302290)				$ 140.22
13	WP4387938		Overload (service Only)   (Replaces: 4387938)				$ 198.58
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
15	WP2258450		Relay   (Replaces: 2258450)				$ 118.46
16	2201185		Support Block				$ 8.21
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
19	2182338		Clip, Heater				$ 6.62
22	3400518		Screw				$ 13.63
28	W10823815		Compressor (includes Items 12,13,14,29)   (Replaces: 2225647)				$ 707.86
29	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 57.13
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 8.30
35	2302249		Air Baffle				$ 37.70
36	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
37	2187764		Wire Assembly, Unit				$ 258.93
38	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 25.19
39	2205294		Tube, Discharge				$ 54.65
40	2205293		Tube, Suction				$ 103.20
41	W11676464		Tube, Process   (Replaces: 2212848)				$ 108.61
42	WP489128		Screw   (Replaces: 488500)				$ 11.40
43	978030		Valve, Access (3/4``)				$ 137.25
43	876764		Valve, Access(3/16``)			Immediately	$ 95.92
43	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
43	978029		Valve Access (5/8``)				$ 93.85
43	978028		Valve, Access (1/2)		Appelez-nous	-
43	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
43	978026		Valve, Access (5/16``)			Immediately	$ 134.49
43	8201826		Evaporator Tray   (Replaces: 2300635)				$ 164.78
	1117510		Torx Key				$ 5.84
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	W11700559		Imkit94   (Replaces: 2171811)				$ 246.03
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
