SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Lit/optional
New Model Search:

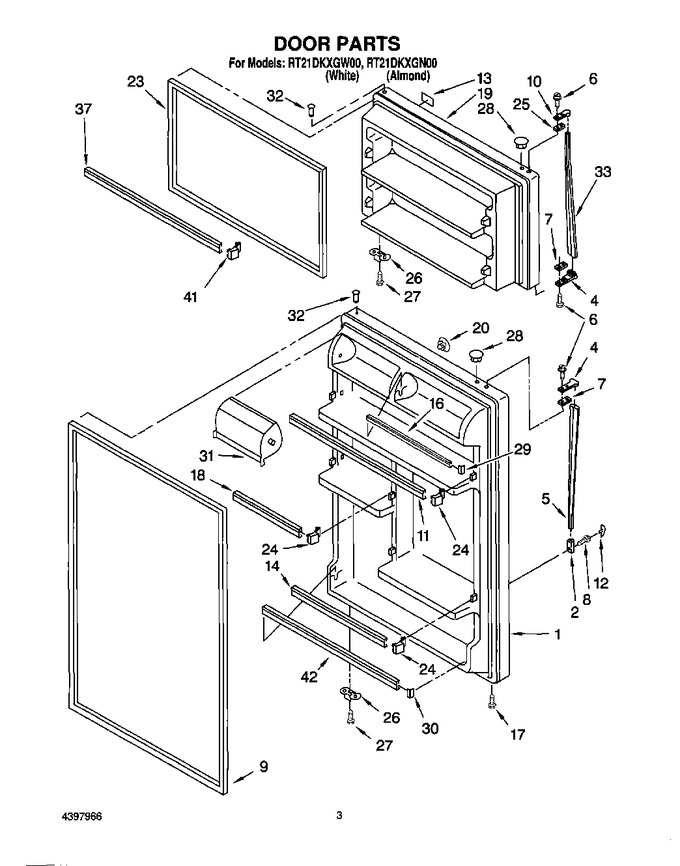

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183946 | Refrigerator Door (includes No.9 & No.32) (white) |
|
- | |||||
| 1 | 2183947 | Refrigerator Door (includes No.9 & No.32) (almond) |
|
- | |||||
| 2 | 819342 | End Cap (Replaces: 2183140) |
|
Immediately | $ 47.96 | ||||
| 4 | 819342 | End Cap, Handle (Replaces: 1108952) |
|
Immediately | $ 47.96 | ||||
| 5 | 1109166 | Handle, Center |
|
- | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.49 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 9 | 2159061 | Door Gasket, Magnetic |
|
Immediately | $ 183.67 | ||||
| 10 | 1108955 | End Cap, Top |
|
- | |||||
| 11 | 2195944 | Trim, Door Shelf |
|
$ 47.99 | |||||
| 12 | WP1101634 | Cover, Screw (Replaces: 1110059) |
|
$ 9.22 | |||||
| 13 | 2163676 | Nameplate |
|
$ 36.02 | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195367) |
|
$ 87.41 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 18 | 2195945 | Trim, Door Shelf |
|
- | |||||
| 19 | 2184400 | Freezer Door (includes No.23 & No.32) (almond) |
|
- | |||||
| 19 | W11023679 | Freezer Door (includes No. 23 & No. 32) (white) (Replaces: 2182489) |
|
$ 722.23 | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 23 | 2159060 | Door Gasket, Magnetic |
|
$ 320.01 | |||||
| 24 | WP2195915 | Endcap, Trim (Replaces: 2195915) |
|
$ 13.07 | |||||
| 25 | 943187 | Shim |
|
$ 25.14 | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | WP2218118 | Compartment Door (Replaces: 2177130) |
|
$ 78.02 | |||||
| 32 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 33 | 2173344 | Handle, F.c. |
|
- | |||||
| 37 | 2195947 | Trim-door (2) |
|
$ 50.94 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 42 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 109.28 | |||||
| 100 | 2182576 | Featurepak (includes 11,14, 16,18,29,30,31, 37,41,42) Also See Shelf Parts Page. |
|
- |
