SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

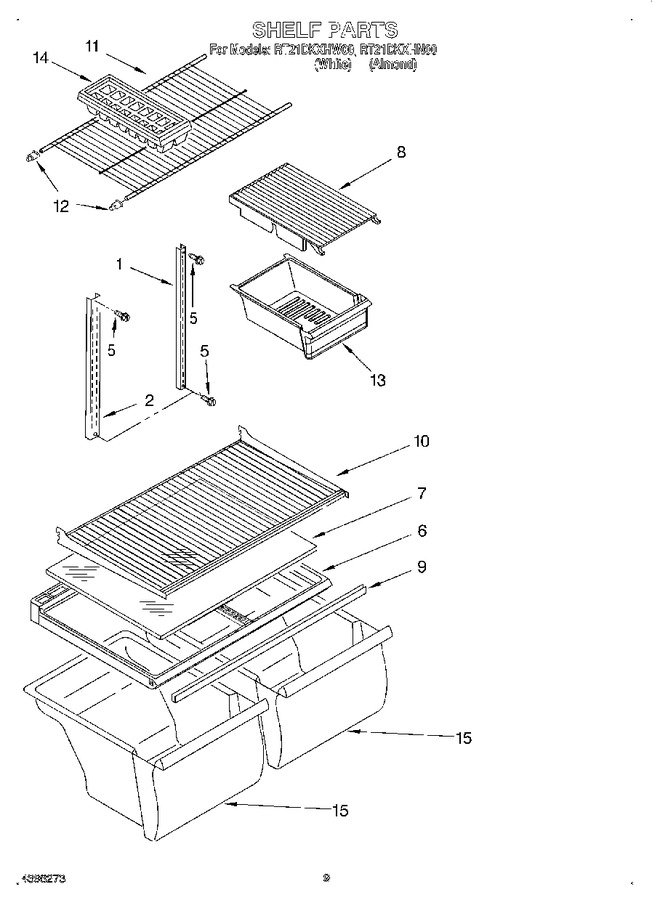

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2202822		Shelf, Ladder (2)		Appelez-nous	-
2	2202821		Shelf, Ladder Center		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 279.10
7	WP2176225		Glass, Crisper Cover   (Replaces: 2176225)				$ 264.41
8	2163848		Cover, Meat Pan				$ 71.41
9	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
10	2195398		Shelf, Full Cantilever		Appelez-nous	-
11	2189454		Shelf, Freezer		Appelez-nous	-
12	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
13	2200920K		Pan, Meat				$ 81.92
14	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
15	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 179.19
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
100	833938		Kit, Terminal Connector				$ 8.47
100	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
100	350942		Primer White (13 Oz. Spray Can)				$ 94.14
100	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
100	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	1117510		Torx Key				$ 5.84
100	2204793		Featurepak (includes 8, 13) Also See Door Pg.		Appelez-nous	-
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
100	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14

    View Diagram in Separate Window       Print Part List
