01 - Cabinet, Literature

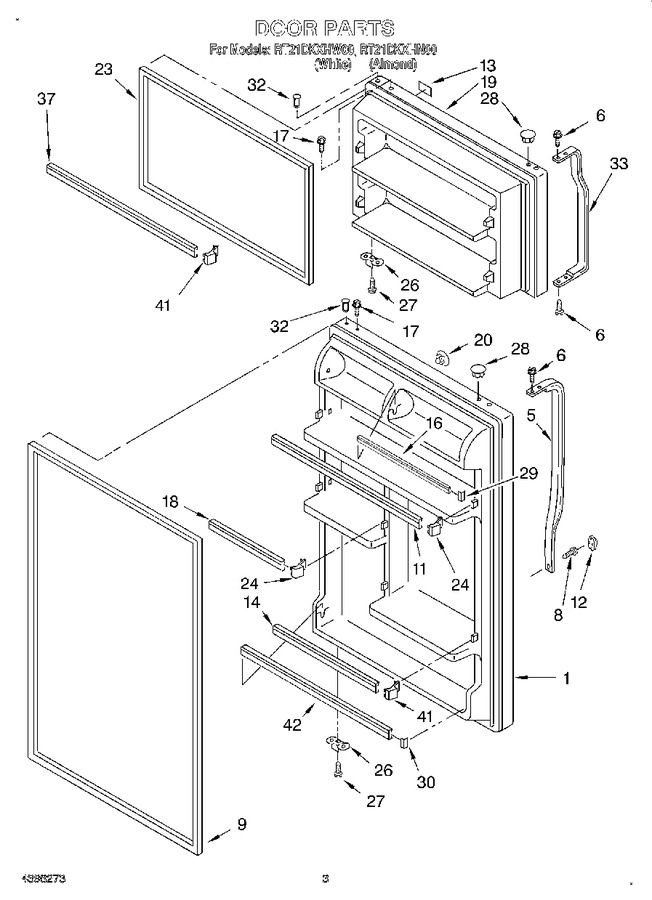

02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183946 | Refrigerator Door (includes No.9 & No.32) (white) |
|
- | |||||
| 1 | 2183947 | Refrigerator Door (includes No.9 & No.32) (almond) |
|
- | |||||
| 5 | 2202807N | Handle, R.c. (almond) |
|
- | |||||
| 5 | WP2202807W | Handle, R.c. (white) (Replaces: 2202807W) |
|
$ 162.98 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 9 | 2159061 | Door Gasket, Magnetic |
|
Immediately | $ 183.67 | ||||
| 11 | WP2201061 | Trim, Door Shelf (Replaces: 2201061) |
|
$ 124.32 | |||||
| 12 | 2202819N | Cover, Screw (almond) |
|
- | |||||
| 12 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 13 | 2200504 | Nameplate (almond) |
|
- | |||||
| 13 | 2200503 | Nameplate (white) |
|
- | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 124.32 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | WP2201062 | Trim, Door (Replaces: 2201062) |
|
$ 8.42 | |||||
| 19 | W11023679 | Freezer Door (includes No. 23 & No. 32) (white) (Replaces: 2182489) |
|
$ 758.35 | |||||
| 19 | 2184400 | Freezer Door (includes No.23 & No.32) (almond) |
|
- | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 23 | 2159060 | Door Gasket, Magnetic |
|
$ 336.01 | |||||
| 24 | WP2195915 | Endcap, Trim (Replaces: 2195915) |
|
$ 13.72 | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 32 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 33 | WP2202806W | Handle, F.c. (white) (Replaces: 2202806W) |
|
$ 155.40 | |||||
| 33 | 2202806N | Handle, F.c. (almond) |
|
- | |||||
| 37 | WP2201060 | Trim-door (2) (Replaces: 2201060) |
|
$ 120.21 | |||||
| 41 | WP2156003 | Endcap (6) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 42 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 114.74 | |||||
| 100 | 2204793 | Featurepak (includes 11, 14, 16, 18, 29, 30, 37, 41, 42) Also See Shelf Parts Page. |
|
- |
