SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf


06 - Ice Maker, Optional

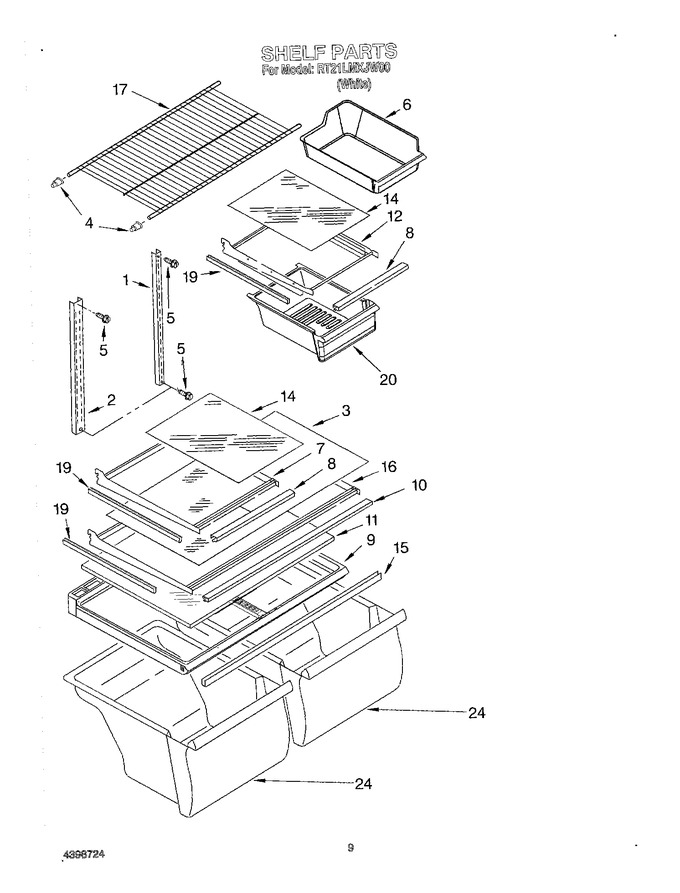

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2200988		Glass, Full Shelf		Appelez-nous	-
4	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
5	983604		Screw		Appelez-nous	-
6	2254352A		Pan, Ice   (Replaces: 2176219)				$ 58.64
7	2201102		Shelf, Cantilever				$ 74.19
8	2201098		Trim, Shelf Front		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 279.10
10	2201100		Trim, Shelf Front		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2201106		Pan, Shelf Cantilever				$ 77.79
14	2200987		Glass, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2201104		Shelf, Full Cantilever				$ 110.02
17	2189454		Shelf, Freezer		Appelez-nous	-
19	2201089		Trim, Shelf Side		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2201032K)			Immediately	$ 159.64
24	W10854037		Crisper Pan   (Replaces: 2201023)			Immediately	$ 179.19

    View Diagram in Separate Window       Print Part List
