SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

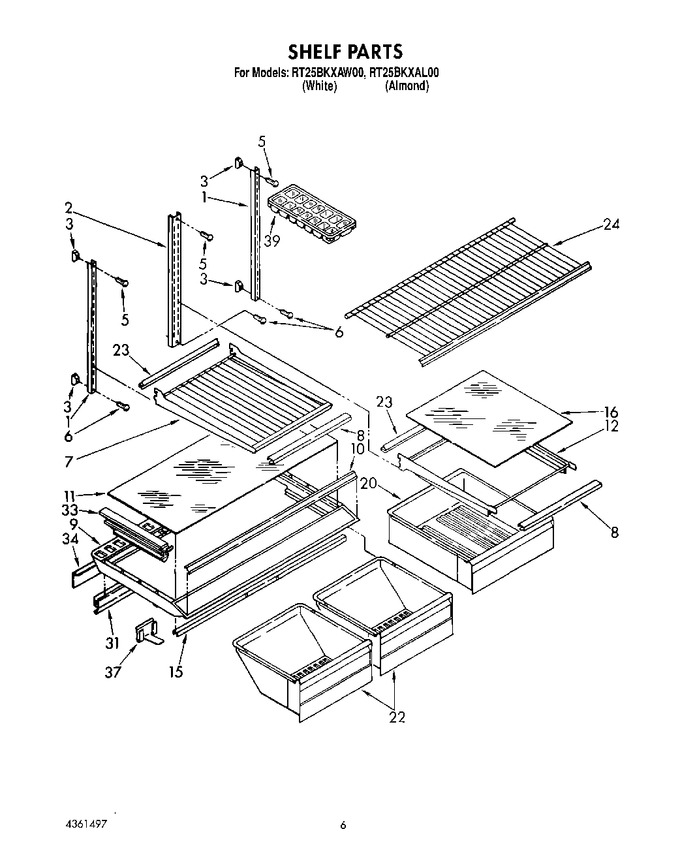

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support				$ 31.35
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	2152542		Shelf, Cantilever		Appelez-nous	-
8	2152569		Trim, Shelf		Appelez-nous	-
9	2152583		Crisper Cover		Appelez-nous	-
10	1121136		Trim, Crisper Cover		Appelez-nous	-
11	2152572		Glass, Crisper Cover		Appelez-nous	-
12	2147577		Pan Shelf, Cantilever		Appelez-nous	-
15	1114568		Support, Cover		Appelez-nous	-
16	2152568		Shelf, Glass		Appelez-nous	-
20	2152570		Pan, Meat		Appelez-nous	-
22	2152582		Pan, Crisper		Appelez-nous	-
23	1125754		Reflector, Shelf		Appelez-nous	-
24	1121154		Shelf, Freezer		Appelez-nous	-
31	1116666		Crisper, Gasket Rear		Appelez-nous	-
33	1118092		Crisper Track, Center		Appelez-nous	-
34	2147047		Support Bar		Appelez-nous	-
37	2149078		Clip (3)		Appelez-nous	-
39	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
39	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
39	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
39	833938		Kit, Terminal Connector				$ 8.47
39	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
39	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
39	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
39	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
39	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
39	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
39	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
39	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
39	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
39	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
39	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
39	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
39	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
39	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
39	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
39	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
39	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
39	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
39	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
39	2148985		Door Reversal Instructions		Appelez-nous	-
39	350942		Primer White (13 Oz. Spray Can)				$ 94.14
39	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT2154076		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 149.11
	LIT2163451		Use & Care Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2163500		Energy Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
