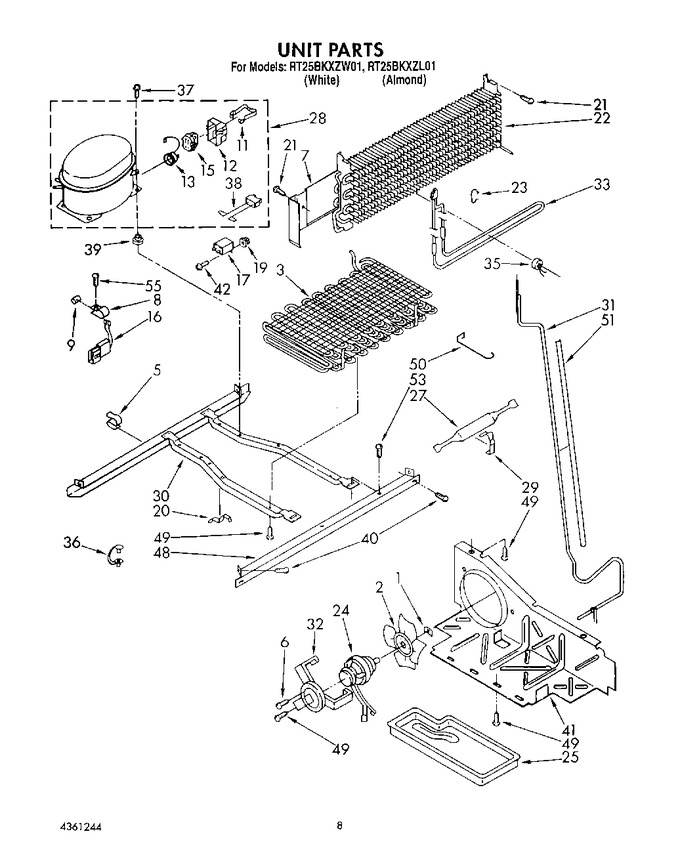

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	1105640		Condenser Assembly		Appelez-nous	-
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	1116511		Heat Shield, Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
11	943322		Strap (production)		Appelez-nous	-
11	938384		Strap (service)		Appelez-nous	-
12	1108115		Cover (service)		Appelez-nous	-
12	1105055		Cover (production)		Appelez-nous	-
13	2154794		Overload (production (includes Relay))		Appelez-nous	-
13	2162362		Overload (service (includes Relay))		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Capacitor (production)   (Replaces: 1114291)			Immediately	$ 58.86
17	2154565		Capacitor (service)		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP965173		Screw, 8 X 1/2   (Replaces: 487869)			Immediately	$ 11.87
22	1115146		Evaporator		Appelez-nous	-
23	2149120		Support, Heater		Appelez-nous	-
24	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
28	2149958		Compressor (includes Items 11, 12, 13, 15, 38 & 39) (also Order 876765 Tube Kit)		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 1127934)		Appelez-nous	-
31	2154440		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2149173		Heater, Defrost		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
36	1115141		Clip, Wire		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 84.67
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
51	1108690		Sleeve		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
55	876764		Valve, Access(3/16``)			Immediately	$ 95.92
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 137.25
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
55	978026		Valve, Access (5/16``)			Immediately	$ 134.49
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
