| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 1 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 1 | 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | |||||
| 1 | WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 53.65 | ||||
| 1 | 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 38.83 | ||||
| 1 | WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 39.58 | ||||
| 1 | 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 48.32 | |||||
| 1 | 4317925 | Side Panel Kits (white) |
|
- | |||||
| 1 | 4317929 | Side Panel Kits (almond) |
|
- | |||||
| 1 | 4318050 | Door Spring Kit (heavy Duty) |
|
$ 23.68 | |||||
| 1 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 1 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||

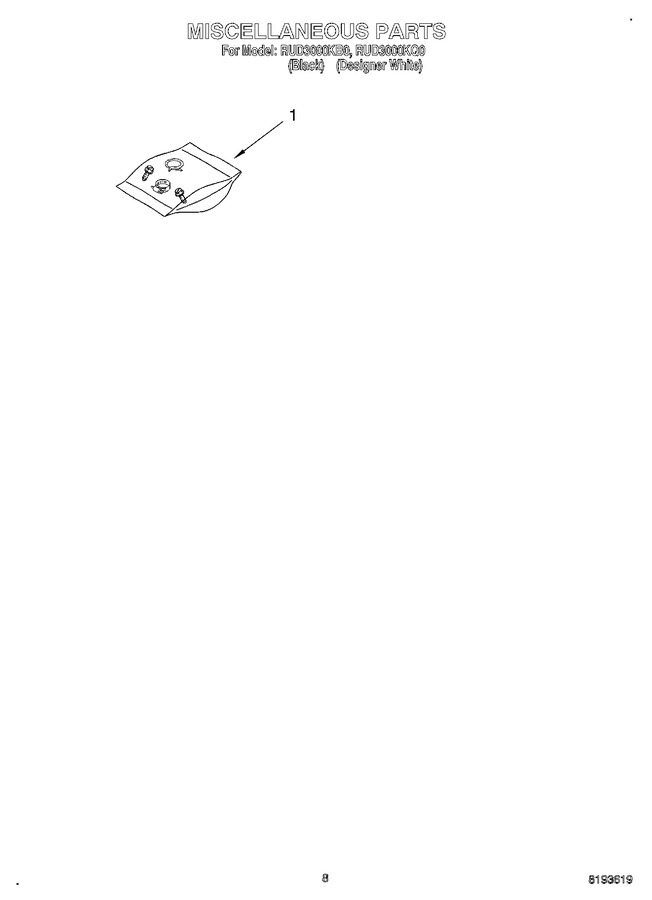

| 1 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 | |||||
| 1 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | |||||
| 1 | 350942 | Primer White |
|
$ 94.14 | |||||
| 1 | 978883 | Almond (uncut) |
|
- | |||||
| 1 | 799340 | Black (uncut) |
|
- | |||||
| 1 | W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 47.66 |
