SELECT A DIAGRAM

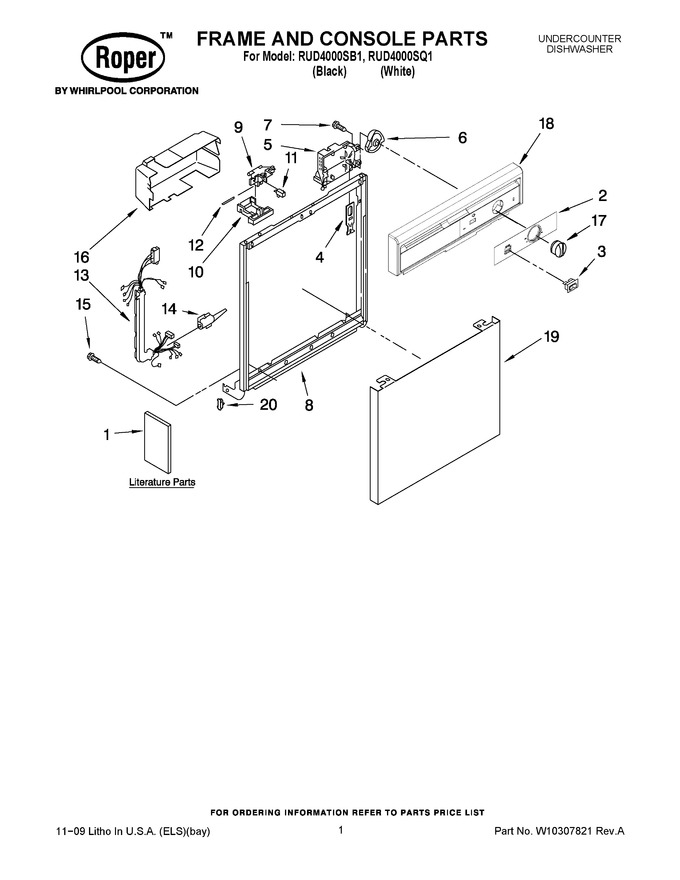

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3385496		Diagram, Wiring		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10199535		Guide, Energy		Appelez-nous	-
1	W10130984		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10133159		Guide, Use & Care (spanish)		Appelez-nous	-
2	W10102120		Insert, Console (white)		Appelez-nous	-
2	W10102110		Insert, Console (black)		Appelez-nous	-
3	8051730		Switch, Rocker (white)				$ 83.48
3	8051729		Switch, Rocker (black)				$ 81.19
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 62.31
5	WP8535372		Timer   (Replaces: 8535372)				$ 318.00
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.11
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.75
8	9743028		Door Frame				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch White		Appelez-nous	-
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch		Appelez-nous	-
12	3368955		Pin, Switch				$ 7.75
13	8573186		Harness And Protector				$ 162.29
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 7.75
16	8051644		Cover, Timer		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 75.05
18	W10072790		Console (includes Item 2) (white)				$ 178.63
18	W10072780		Console (includes Item 2) (black)		Appelez-nous	-
19	3379375		Front Panel (black)				$ 115.07
19	3379376		+front Panel (white)				$ 116.81
20	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 10.49
