01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts

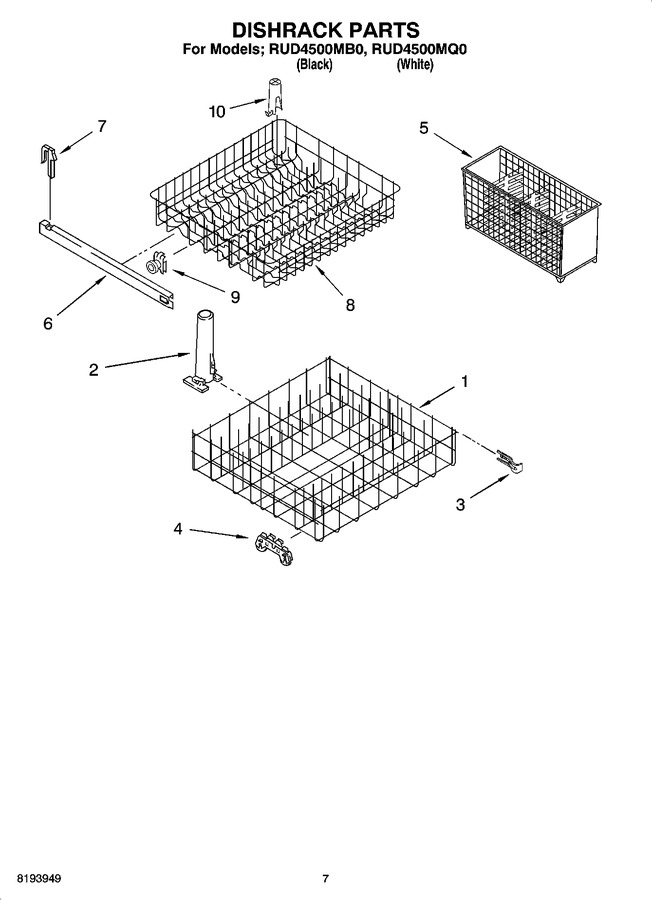

06 - Dishrack Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
1	4317929		Side Panel Kits (almond)		Appelez-nous	-
1	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
1	N/A		Door Spring Kit:		Appelez-nous	-
1	4318050		Heavy Duty				$ 23.68
1	W10161215		Lower Dishrack Assembly   (Replaces: 8539224)				$ 198.12
1	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
1	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
1	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
1	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
1	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
1	978883		Paint, Touch-up (1 Qt.) (almond (uncut))		Appelez-nous	-
1	799340		Paint, Touch-up (1 Qt.) (black (uncut))		Appelez-nous	-
1	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
1	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
1	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
1	4317925		Side Panel Kits (white)		Appelez-nous	-
2	WP8268825		Tower, Protector   (Replaces: 8268825)				$ 108.90
3	WP3385142		Bumper, Dishrack (2)   (Replaces: 3385142)				$ 94.82
4	WP8268645		Wheel & Transport Assembly (4)   (Replaces: 8268645)			Immediately	$ 62.31
5	WP8268864		Basket, Silverware   (Replaces: 8268864)				$ 100.20
6	WP3385089		Track, Dishrack (2)   (Replaces: 3385089)			Immediately	$ 80.00
7	WP8565925		Stop, Track (4)   (Replaces: 8524581)			Immediately	$ 6.87
8	W11169039		Dishrack, Upper   (Replaces: 8539223)			Immediately	$ 203.14
9	8268846		Wheel & Axle Assembly (4)				$ 26.01
10	8519550		Diffuser, Water				$ 51.36
