SELECT A DIAGRAM

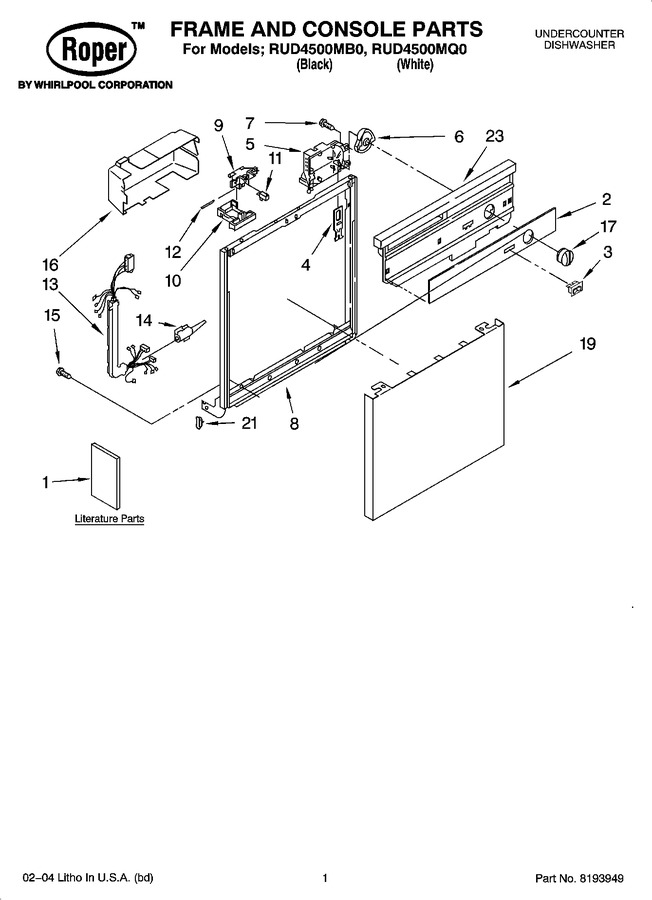

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3385496		Literature Parts (diagram, Wiring)		Appelez-nous	-
1	LIT3385181		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (location Your Water Supply))		Appelez-nous	-
1	LIT8535158		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT3381204		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	3385476		Insert, Console (white)		Appelez-nous	-
2	3385475		Insert, Console (black)		Appelez-nous	-
3	8051730		Switch, Rocker (white)				$ 83.48
3	8051729		Switch, Rocker (black)				$ 81.19
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535372		Timer   (Replaces: 3384860)				$ 333.90
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch White		Appelez-nous	-
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3385498		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051644		Cover, Timer		Appelez-nous	-
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 75.05
17	8275308		Knob, Timer (black)				$ 75.05
19	3379375		Front Panel (black)				$ 115.07
19	3379376		+front Panel (white)				$ 116.81
21	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	3380931		Console (includes Item 2) (white)		Appelez-nous	-
23	3380929		Console (includes Item 2) (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
