01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Sprayarm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

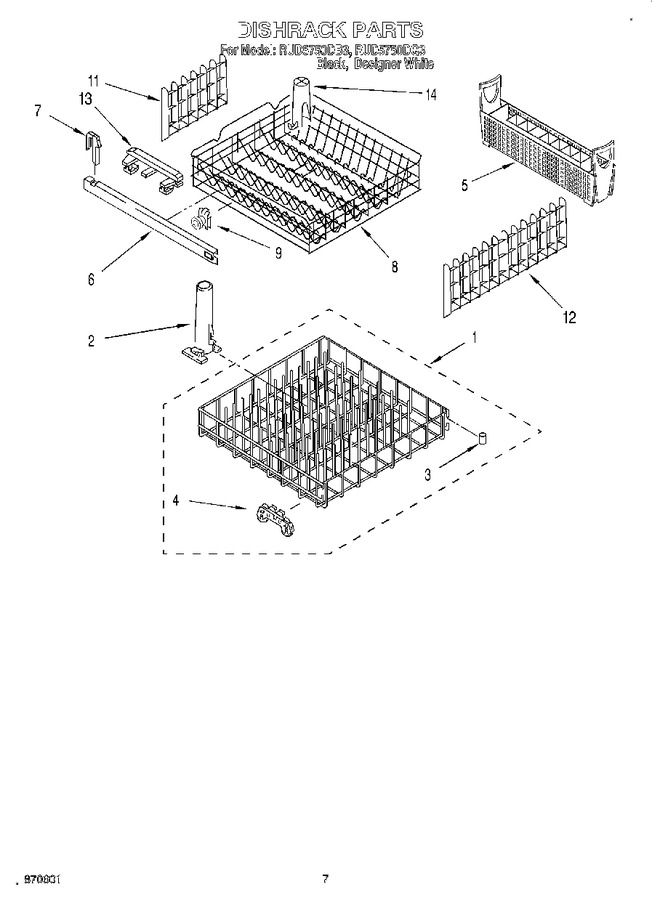

| 1 | W10311986 | Lower Dishrack Assembly (Replaces: 3370490) |
|
Immediately | $ 188.14 | ||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3369761) |
|
$ 108.90 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3368006) |
|
$ 94.82 | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3376961) |
|
$ 98.69 | |||||
| 5 | 4160463 | Basket, Silverware |
|
- | |||||
| 6 | WP3385089 | Track, Dishrack (2) (Replaces: 9742998) |
|
Immediately | $ 80.00 | ||||
| 7 | 3379941 | Stop, Track (4) |
|
$ 42.08 | |||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 3371663) |
|
Immediately | $ 203.14 | ||||
| 9 | 3379727 | Wheel & Axle Assembly (4) |
|
- | |||||
| 11 | WP8268828 | Cupshelf, Small (2) (Replaces: 3371264) |
|
$ 135.89 | |||||
| 12 | 3371265 | Cupshelf, Large (2) |
|
- | |||||
| 13 | WP3357331 | Clip, Cupshelf (6) (Replaces: 3369913) |
|
$ 8.19 | |||||
| 14 | 3371908 | Diffuser, Water |
|
- |
