01 - Frame And Console


02 - Inner Door


03 - Tub Assembly, Lit/optional


04 - Pump And Spray Arm


05 - Pump And Motor, Miscellaneous


06 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

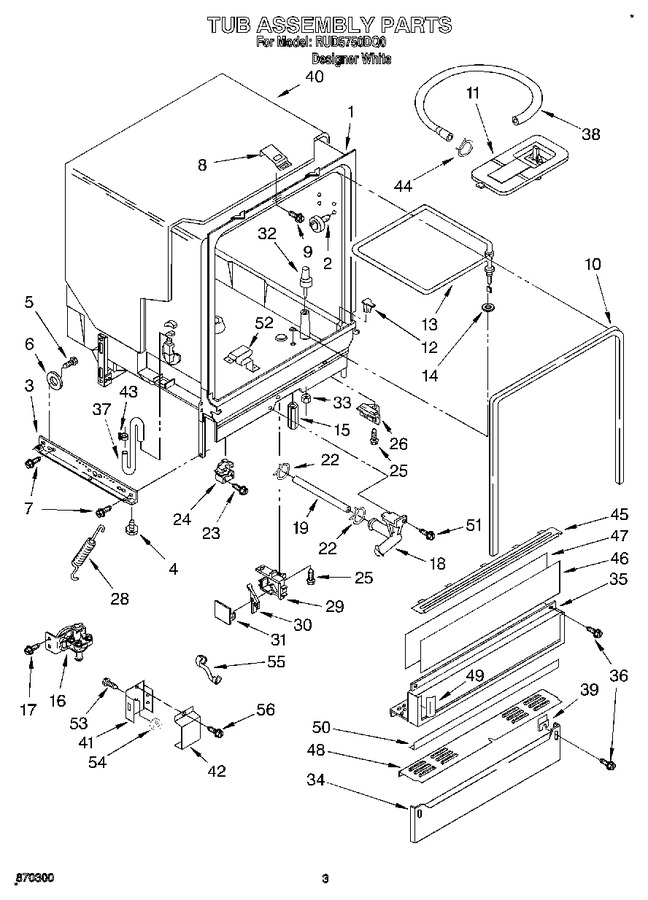

1	3375129		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3374719		Plate, Latch		Appelez-nous	-
9	3374720		Screw, 8-32				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 99.06
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	WPW10082894		Heater   (Replaces: 3372523)				$ 141.52
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3374621		Water Valve				$ 79.23
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
22	371499		Clamp				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 11.40
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 81.57
28	3373228		Spring, Door (2)				$ 24.53
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 124.92
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	WP3369193		Panel, Access   (Replaces: 3369193)				$ 171.61
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 102.23
39	3374718		Clip, Grounding		Appelez-nous	-
40	W11086533		Shield, Sound   (Replaces: 3375549)			Immediately	$ 31.30
41	3370292		Box, Terminal		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
43	WP596669		Hose Clamp   (Replaces: 301958)			Immediately	$ 8.82
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
45	3372413		Retainer, Access Panel				$ 40.99
46	3370868		Access Panel (white/black)				$ 26.11
47	3369526		Spacer, Corrugated				$ 25.23
48	3374728		Extension & Clip Assembly				$ 66.42
49	3371195		Trim, Side (2)		Appelez-nous	-
50	3369591		Trim, Bottom		Appelez-nous	-
51	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
52	3368987		Support, Heater		Appelez-nous	-
53	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 8.78
54	WP488130		Nut, 8-32   (Replaces: 3371579)				$ 7.32
55	3370307		Relief, Strain		Appelez-nous	-
56	3369138		Screw, 8-18				$ 5.81
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
	LIT3369679		Instructions, Installation		Appelez-nous	-
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	799340		Black (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	350942		Primer White				$ 94.14
	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	4318050		Door Spring Kit (heavy Duty)				$ 23.68
	4317931		Platinum		Appelez-nous	-
	4317930		Toast		Appelez-nous	-
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	4317929		Side Panel Kit: (almond)		Appelez-nous	-
	4317927		Gold		Appelez-nous	-
	4317926		Avocado		Appelez-nous	-
	4317925		Side Panel Kit (white)		Appelez-nous	-
	LIT3373619		Wiring Diagram		Appelez-nous	-
	LIT3376809		Guide, Use & Care		Appelez-nous	-
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3373485		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
